Phidgets

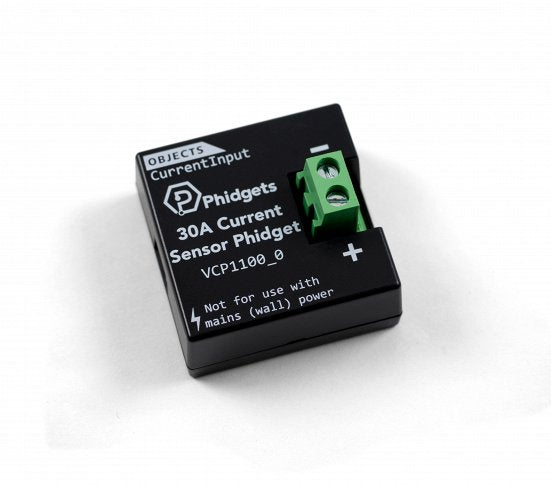

30A Current Sensor Phidget

30A Current Sensor Phidget

VCP1100_0

180.00 ₪
180.00 ₪
Sale Sold out

30A Current Sensor Phidget

Measure in-line DC current flow of up to 30A with this Phidget that connects to a VINT port

With the VCP1100, you can quickly and easily measure the current flow in an electronic circuit or device. Just put this current sensor in series with one of the power lines, and you’ll be able to measure up to 30A of direct current. It connects to a port on a VINT Hub; you can find a list of hubs on the “Compatible Products” tab.

Isolated for Stability

This Phidget is electrically isolated, so a power surge on the circuit you’re measuring will not damage your VINT Hub or your computer. Isolation also improves stability by eliminiating potential ground loops.

Product Specifications

Sensor Properties

  • Sensor Type Current (DC In-Line Hall Effect)
  • Controlled By VINT
  • Input Current Min -30 A
  • Input Current Max 30 A
  • Current Measurement Resolution 1.1 mA
  • Surge Current (Input) 100 A
  • Measurement Error Max 4 %
  • Input Current Noise 20 mA

Physical Properties

  • Recommended Wire Size 10 – 26 AWG
  • Operating Temperature Min -40 °C
  • Operating Temperature Max 85 °C

Electical Properties

  • Current Consumption Max 1.8 mA
  • Current Consumption Min 20 μA
  • Isolation Voltage (DC) 50 V DC

Electrical Properties

  • Input Impedance

Download the full product sheet:

PDF icon Download Product Sheet, PDF

Warranty & Delivery

  • Warranty: 12 months
  • Delivery time: up to 10 business days
  • Professional customer service, fast delivery, attractive pricing
  • Genuine Phidgets product
