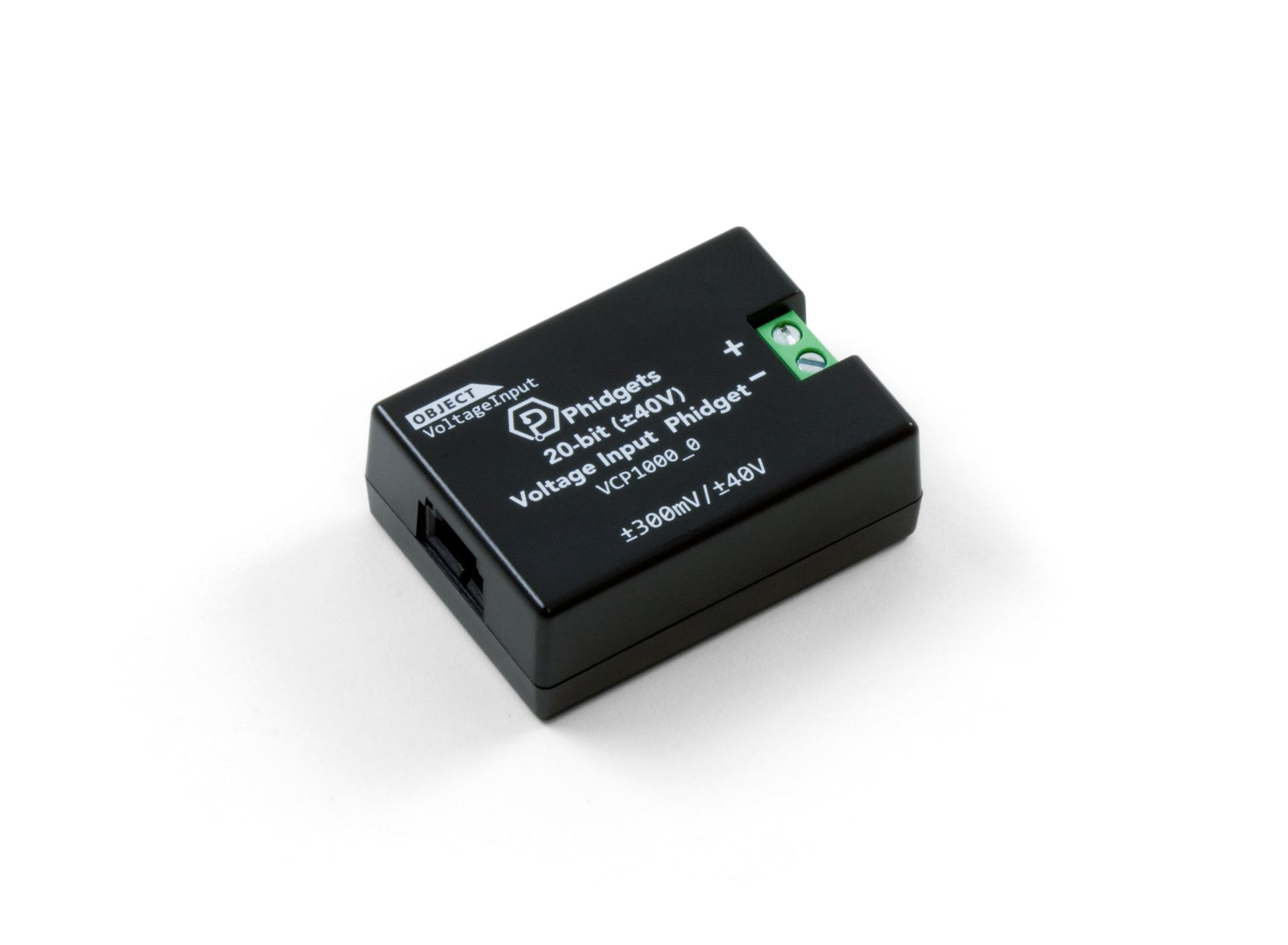

20-Bit (±40V) Voltage Input Phidget

20-Bit (±40V) Voltage Input Phidget

VCP1000_0

340.00 ₪
340.00 ₪
Sale Sold out

20-Bit (±40V) Voltage Input Phidget

Measure up to ?±40V with this high precision isolated voltage input Phidget. Connects to a VINT port.

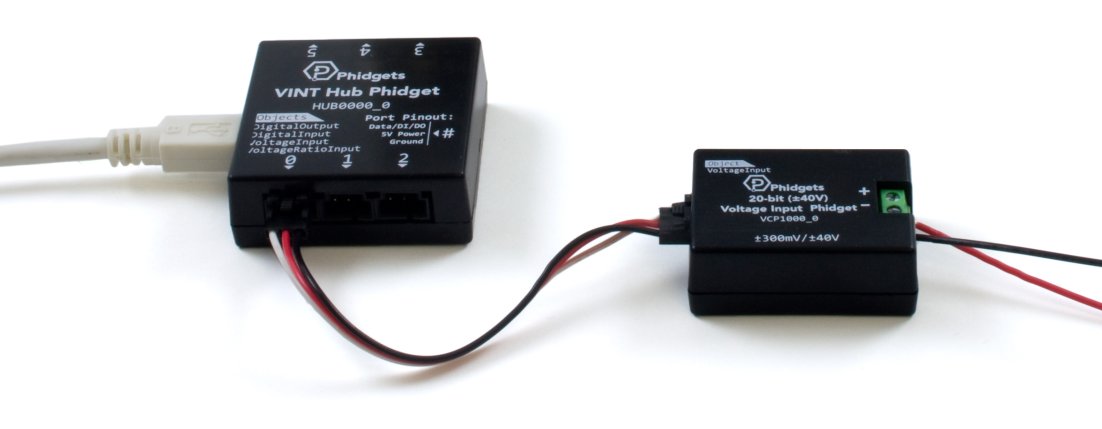

Do you need to measure larger voltage potentials, but would also like to have high precision measurements? This voltage input Phidget is the best of both worlds. You can measure voltage up to ?±40V with a resolution of 77 microvolts with this impressive little Phidget. You can switch the voltage range to ?±312mV mode from software, increasing the resolution to 600 nanovolts. The VCP1000 connects to a port on a VINT Hub. See the “Comaptible Products” tab for a list of hubs.

Isolated for Stability

This Phidget is electrically isloated, so a power surge on the circuit you’re measuring will not damage your VINT Hub or your computer. Isolation also improves stability by eliminiating potential ground loops.

Product Specifications

Sensor Properties

  • Sensor Type Voltage (DC)

Board Properties

  • Controlled By VINT

Voltage Sensor

  • Voltage Difference Max ± 40 V DC
  • Withstand Voltage Max ± 50 V DC
  • Measurement Error Max 0.01 %
  • Sampling Interval Min 100 ms/sample
  • Sampling Interval Max 60 s/sample

Electrical Properties

  • Sensor Input Impedance 1 MΩ
  • Current Consumption Max 13 mA

±40V Range

  • Voltage Resolution 77 μV DC

±312 mV Range

  • Voltage Resolution 600 nV DC

Physical Properties

  • Recommended Wire Size 16 – 26 AWG
  • Operating Temperature Min -40 °C
  • Operating Temperature Max 85 °C

Download the full product sheet:

PDF icon Download Product Sheet, PDF

Warranty & Delivery

  • Warranty: 12 months
  • Delivery time: up to 10 business days
  • Professional customer service, fast delivery, attractive pricing
  • Genuine Phidgets product
