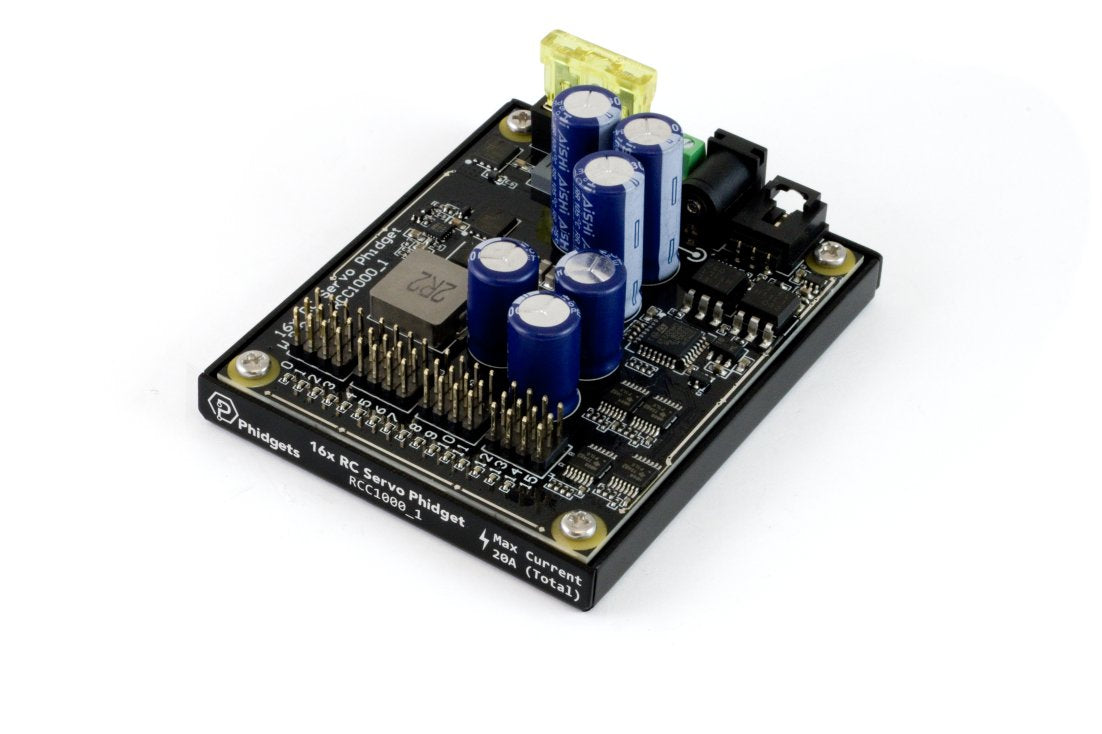

16x RC Servo Phidget (RCC1000_1)
16x RC Servo Phidget (RCC1000_1)
SKU:RCC1000_1
Regular price
389.00 ₪
Regular price
389.00 ₪
Sale price
389.00 ₪
Taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
The RC Servo Phidget can control up to 16 RC servo motors. The servo voltage can be configured in software and up to 20A of total power can be provided to the servos. This Phidget connects to your computer through a VINT Hub.
Features
- Control the position, velocity, and acceleration of 16 servo motors
- Improved 100kbps comms speed between controller and VINT Hub
- Set the min/max pulse width for each servo, and the position they correspond to in code
- Powered by 8-30V DC external power supply
- Control the regulator and choose a global voltage of 5.0V, 6.0V, or 7.4V
- Isolated VINT Port improves reliability and eliminates ground loops
- Polarity and Overcurrent Protection
Product Specifications
Board Properties
- Controlled By: VINT
Controller Properties
- Motor Type: DC Motor
- Number of Motor Ports: 2
- Acceleration Min: 0.1 % Duty Cycle/s
- Acceleration Max: 100 % Duty Cycle/s
- PWM Frequency: 25 kHz
- Sampling Interval Min: 100 ms/sample
- Sampling Interval Max: 60 s/sample
- Acceleration Resolution: 0.1 Duty Cycle/s
- Velocity Resolution: 0.001 Duty Cycle
- Current Limit Resolution: 5.6 mA
- Acceleration Time Min: 20 ms
- Acceleration Time Max: 20 s
Electrical Properties
- Continuous Motor Current Max (per motor): 4 A
- Supply Voltage Min: 8 V DC
- Supply Voltage Max: 30 V DC
- Current Consumption (Unconfigured, VINT Port): 500 μA
- Current Consumption Max (VINT Port): 750 μA
Physical Properties
- Recommended Wire Size: 16 – 26 AWG
- Operating Temperature Min: -40 °C
- Operating Temperature Max: 85 °C
Download the full product sheet:
Download Product Sheet, PDF
Warranty & Delivery
- Warranty: 12 months
- Delivery time: up to 10 business days
- Professional customer service, fast delivery, attractive pricing
- Genuine Phidgets product
