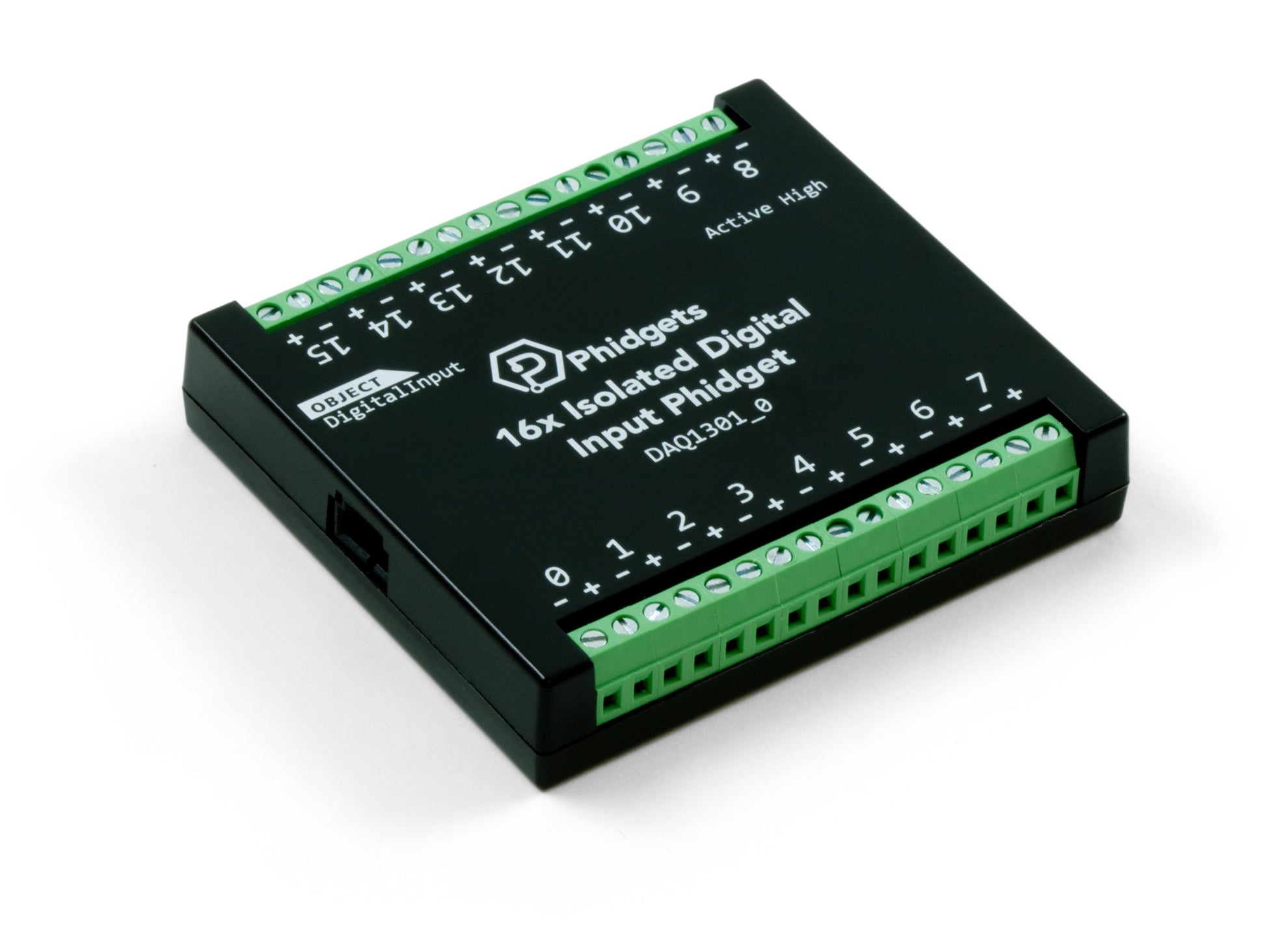

16x Isolated Digital Input Phidget

16x Isolated Digital Input Phidget

DAQ1301_0

340.00 ₪
340.00 ₪
Sale Sold out

16x Isolated Digital Input Phidget

Add 16 isolated active-high digital inputs to your hub at the cost of only one VINT port.

If you need to read a whole bunch of logic-level signals, this input module adds sixteen active-high digital inputs using just one port on your VINT Hub. They’re also more resilient than a VINT port running in digital input mode, able to withstand up to 30V. Whether you’re reading buttons, switches, or logic-level outputs from other devices, this module offers the most efficient use of your VINT ports.

Isolated for Stability

The VINT port on this board is electrically isolated from the digital inputs, preventing instability from ground loops. Each input is also isolated from one another, cutting down on cross-channel interference.

Product Specifications

Board Properties

  • Controlled By VINT

Electrical Properties

  • Current Consumption Min 100 ?¼A
  • Current Consumption Max 8 mA

Digital Inputs

  • Number of Digital Inputs 16
  • Low Voltage Max (False) 1.3 V DC
  • High Voltage Min (True) 2.5 V DC
  • Low Voltage Trigger Length Min 0.2 ms
  • High Voltage Trigger Length Min 0.05 ms
  • Digital Input Voltage Max 30 V DC
  • Digital Input Current 2.5 mA
  • Digital Input Type Powered

Physical Properties

  • Recommended Wire Size 16 – 26 AWG
  • Operating Temperature Min -40 ?°C
  • Operating Temperature Max 85 ?°C

Download the full product sheet:

PDF icon Download Product Sheet, PDF

Warranty & Delivery

  • Warranty: 12 months
  • Delivery time: up to 10 business days
  • Professional customer service, fast delivery, attractive pricing
  • Genuine Phidgets product
