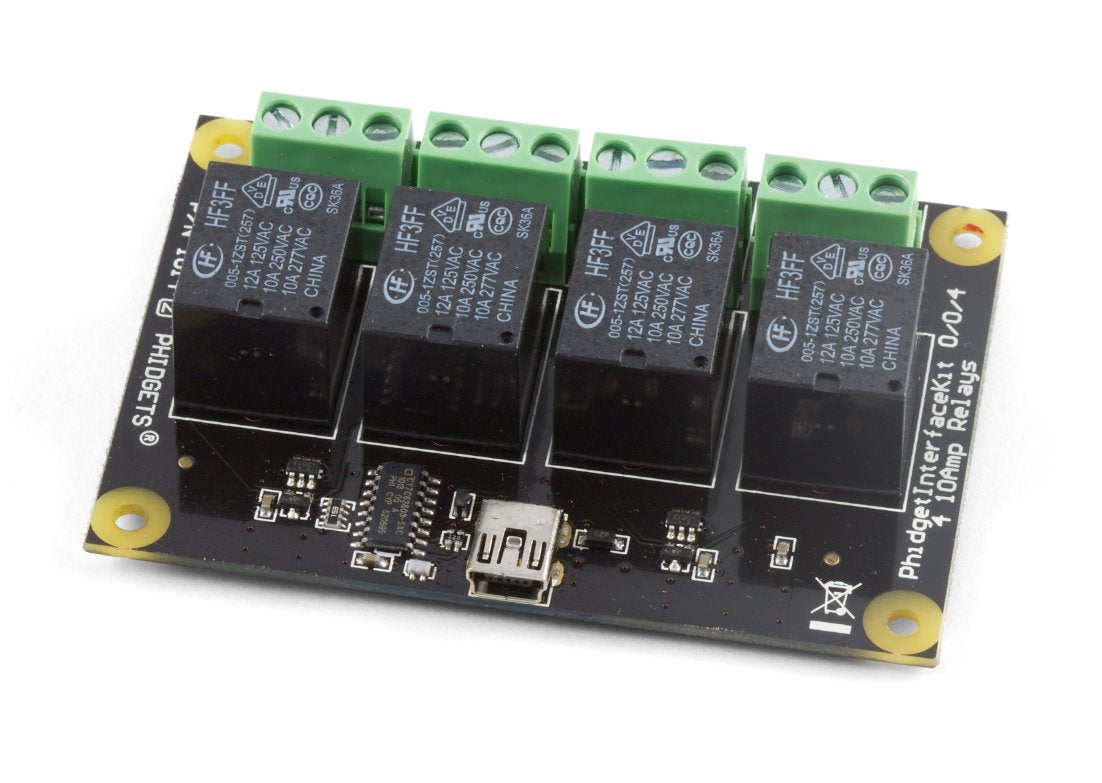

PhidgetInterfaceKit 0/0/4 (1014_2)

The PhidgetInterfaceKit 0/0/4 (1014_2) is a mechanical relay board designed for a wide range of switching applications.

It includes four SPDT mechanical relays capable of switching AC or DC loads, giving you control over high-power devices such as incandescent bulbs, fans, pumps, and more. You can connect the PhidgetInterfaceKit 0/0/4 directly to your computer via USB.

Features:

• Control up to four separate devices or circuits with SPDT relays
• Rated for 210W of DC power or 1750VA of AC power
• For DC applications, switch up to 30V at 7A
• For AC applications, switch up to 12A or 277V AC (total power below 1750VA)
• Direct USB communication with host computer
• Mounting hardware included

PhidgetInterfaceKit 0/0/4 Technical Specifications

• Relay Outputs: 4 x SPDT Mechanical Relays
• Host Interface: USB
• Max DC Power: 210 W
• Max DC Voltage / Current: 30 V DC @ 7 A
• Max AC Power: 1750 VA
• Max AC Voltage / Current: 277 V AC / 12 A (Total power < 1750 VA)
• Minimum Contact Current: ~100 mA (Required to break through contact oxide layer)
• Target Applications: Incandescent bulbs, fans, pumps, actuators, high-power switching

The package includes:

• PhidgetInterfaceKit 0/0/4 (1014_2) Relay Board

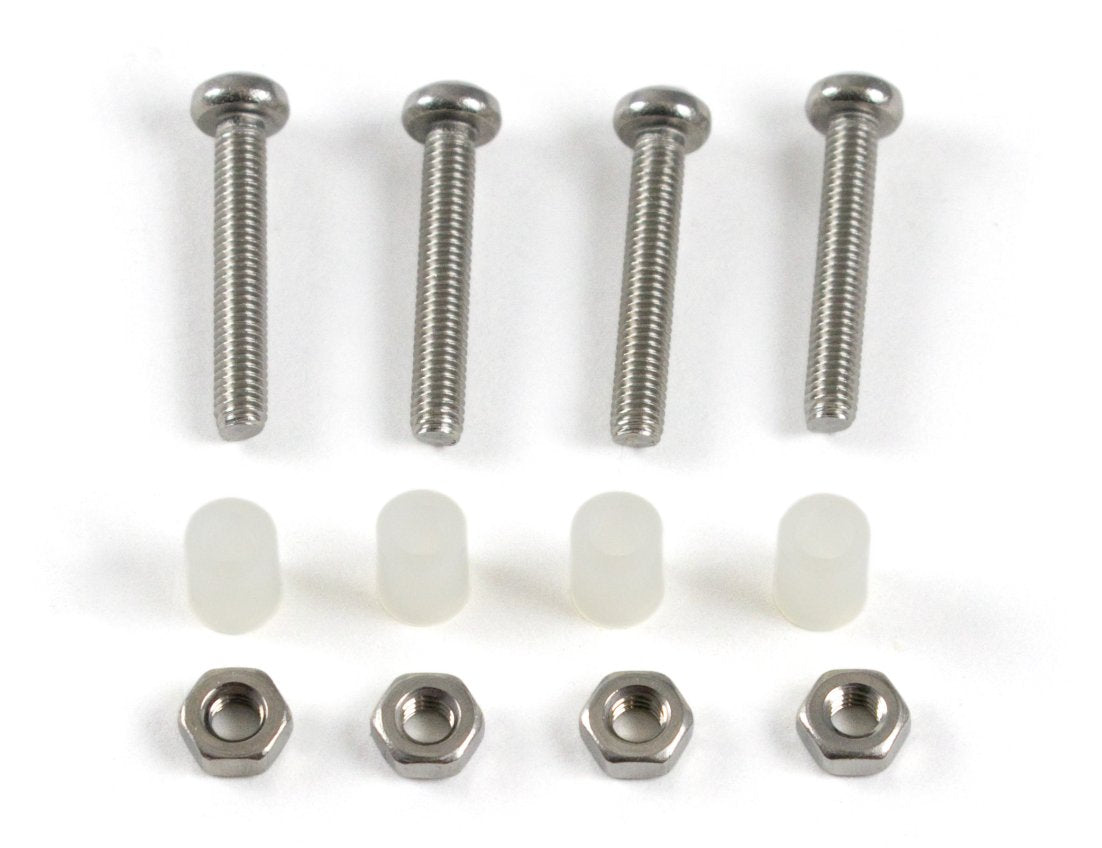

• Mounting Hardware Kit

Supported by Phidgets cross-platform drivers, APIs, and software development libraries for quick integration.

• OS Support: Windows, macOS, Linux
• Languages & Frameworks: C/C++, C#, Python, Java, MATLAB, LabVIEW, Swift, Node.js, and more

Download technical documentation and product details:

Download PhidgetInterfaceKit 0/0/4 Mechanical Drawing (PDF)

• Warranty: 12-Month Factory Warranty
• Delivery time: up to 10 business days
• Professional customer service, fast delivery, attractive pricing
• Genuine Phidgets product
