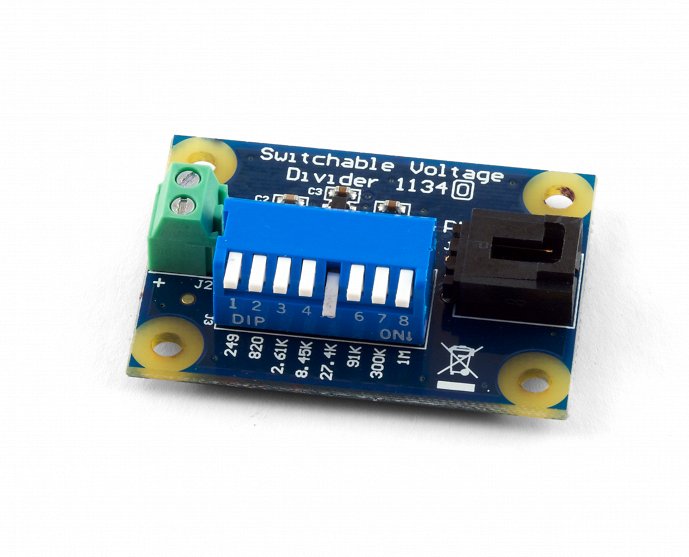

The 1134 – Switchable Voltage Divider is an adjustable resistor used to create a voltage divider with a variable resistance sensor. The 1134’s resistance can be tuned to be close to the resistive sensor by flipping the dip switches on the board. The individual resistance values available (in Ohms) are 249, 820, 2.61K, 8.45K, 27.4K, 91K, 300K and 1M. It is possible to have multiple switches flipped which puts the corresponding resistors in parallel.

The 1134 provides an interface to non-Phidgets variable resistance sensors such as: Force Sensing Resistors (FSR), light sensors, thermistors (heat sensors), and bend sensors.

Typical uses:

  • Interface non-Phidgets variable resistance sensors
  • Select resistor combinations via DIP switches
  • Connect to analog input devices easily

Sensor Properties

  • Sensor type: Resistance
  • Controlled by: VoltageRatio Input
  • Sensor output type: Ratiometric
  • Resistance range: 172 Ω to 1 MΩ

Electrical Properties

  • Current consumption max: 30 mA
  • Supply voltage range: 3 V DC to 5.3 V DC
  • Optimal measurement resistance min (@172Ω): 17.2 Ω
  • Optimal measurement resistance max (@172Ω): 1.7 kΩ
  • Optimal measurement resistance min (@1MΩ): 100 kΩ
  • Optimal measurement resistance max (@1MΩ): 10 MΩ
  • Load resistance max: 50 MΩ
  • Load resistance resolution: 1 %

Physical Properties

  • Recommended wire size: 16 – 26 AWG
  • Operating temperature range: -40 °C to 105 °C

The package includes:

  • 1134 – Switchable Voltage Divider
  • 3002 – 60cm Phidget Cable

Download the full product sheet:

PDF icon Download Product Sheet, PDF
  • Warranty: 12 months
  • Delivery time: up to 10 business days
  • Professional customer service, fast delivery, attractive pricing
  • Genuine Phidgets product
