Single Point Load Cell - 25kg (FRC4116_0)

Single Point Load Cell - 25kg (FRC4116_0)

FRC4116_0

39.00 ₪
49.00 ₪ 39.00 ₪
Sale Sold out
Taxes included. Shipping calculated at checkout.

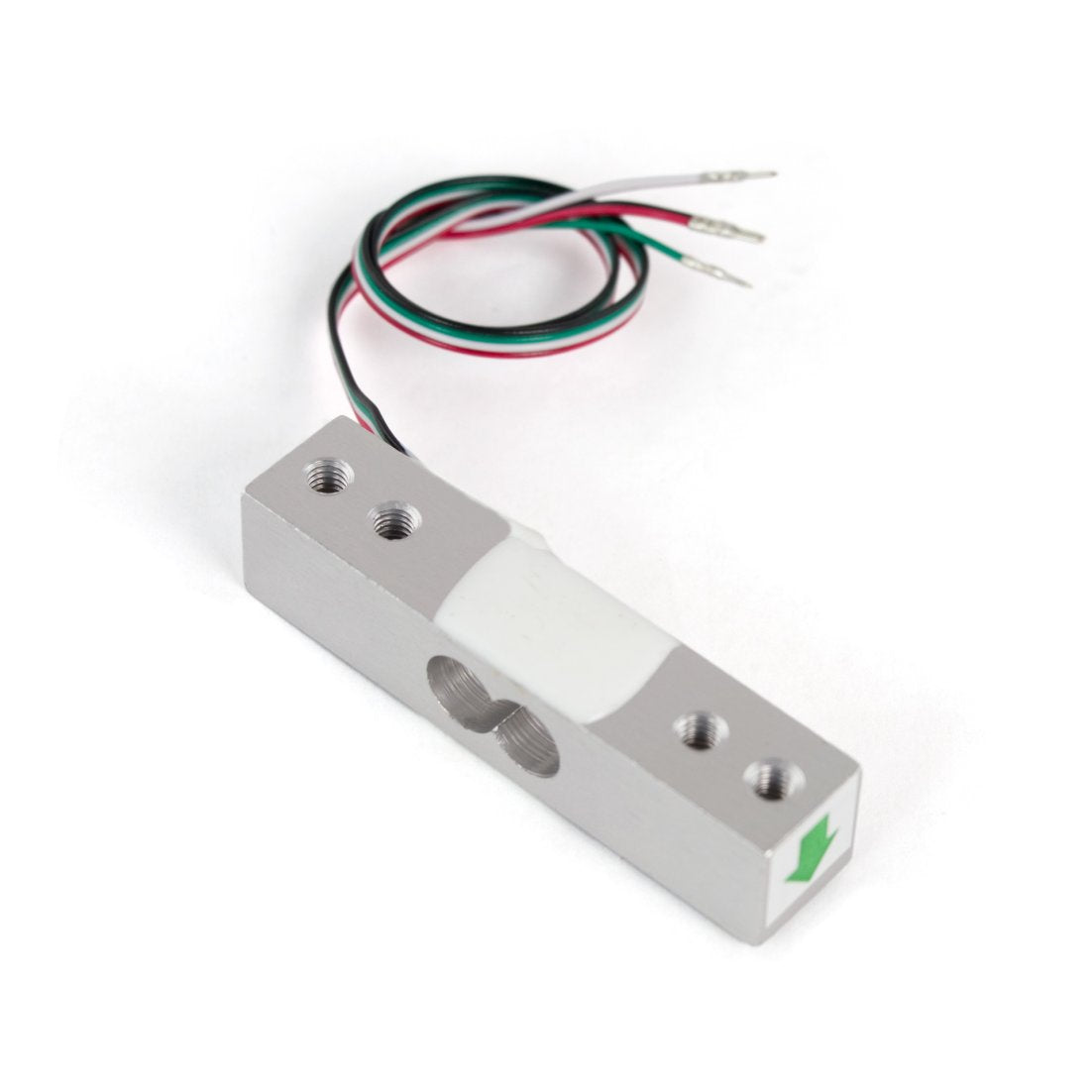

The Single Point Load Cell - 25kg (FRC4116_0) is a compact 58 mm load cell designed for small weighing scale projects and applications like kitchen scales.

Equipped with dual mounting holes for secure physical mounting, it provides accurate force and weight measurements. Load cells require a compatible load cell interface to convert raw strain gauge signals into usable data.

Features:

  • Measures weight or forces up to 25 kilograms
  • Dual mounting holes for secure installation
  • Compact 58 mm form factor, ideal for small scales
  • Works with all Phidget Load Cell Interfaces

Load Cell Capabilities

  • Capacity: 25 kg
  • Type: Single Point
  • Length: 58 mm
  • Mounting: Dual mounting holes
  • Interface Requirement: Requires a Phidget Bridge / Load Cell Interface

The package includes:

  • Single Point Load Cell - 25kg (FRC4116_0)

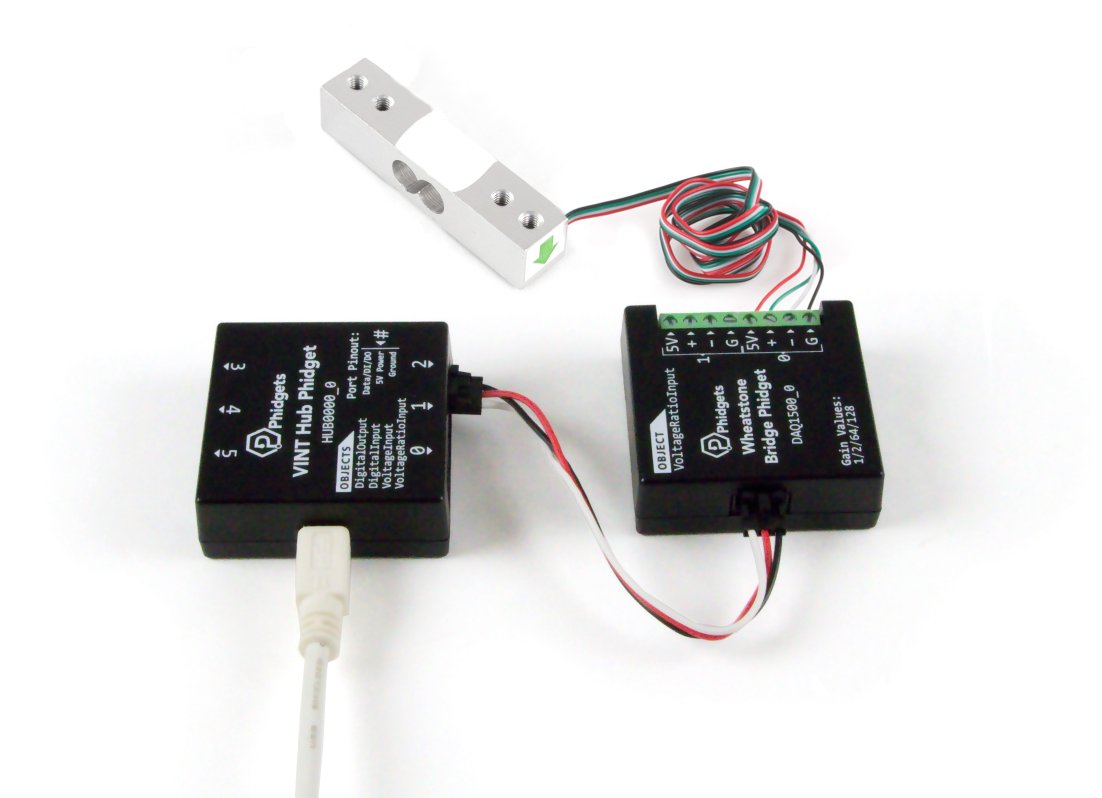

Connects to software via a compatible Phidget Load Cell Interface (such as the DAQ1000 or Wheatstone Bridge interfaces).

  • Libraries: Phidget22 API
  • OS Support: Windows, macOS, Linux, Raspberry Pi
  • Languages: Python, C#, Java, JavaScript, C/C++, Swift, and more

Download the full product sheet and mechanical drawing:

PDF icon Download Product Sheet & Mechanical Drawing, PDF
  • Warranty: 12 months
  • Delivery time: up to 10 business days
  • Professional customer service, fast delivery, attractive pricing
  • Genuine Phidgets product
