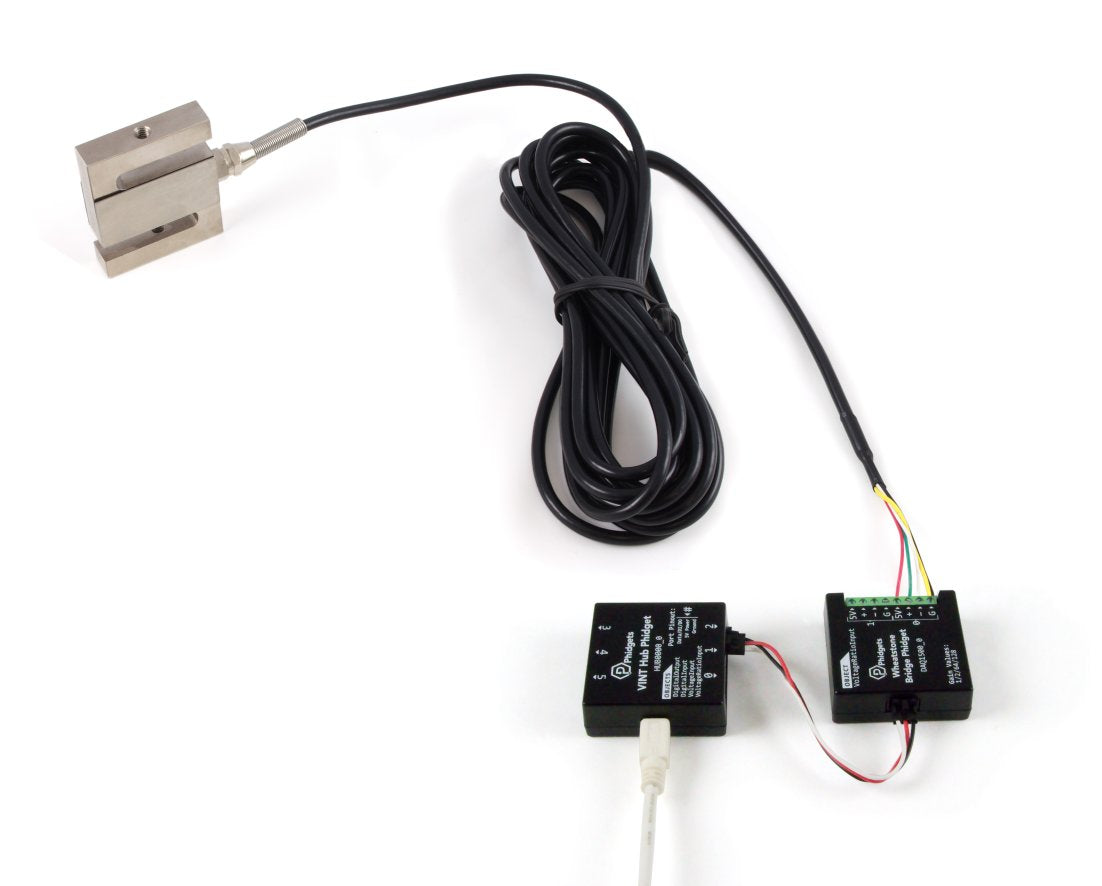

S-Type Load Cell - 500kg (C2) (3140_0)

S-Type Load Cell - 500kg (C2) (3140_0)

3140_0

299.00 ₪
349.00 ₪ 299.00 ₪
Sale Sold out
Taxes included. Shipping calculated at checkout.

This load cell measures tensile forces (e.g. hanging loads). Calibration certificate included.



Load cells are used to measure weight or forces. They require a load cell interface to function.

Features

  • Measures up to 500 kilograms
  • Includes a calibration certificate
  • Extremely precise (±0.03% Full Scale)
  • Works with all Phidget Load Cell Interfaces
  • Can be used in both tension and compression

Sensor Properties

  • Controlled By: Bridge Input
  • Sensor Type: S-Type Load Cell
  • Load Cell Accuracy Class: C3
  • Weight Capacity Max: 500 kg
  • Maximum Overload: 750 kg
  • Creep: 500 g/hr
  • Zero Balance: ± 7.5 kg
  • Cell Repeatability Error Max: ± 250 g
  • Cell Non-Linearity Max: 250 g
  • Cell Hysteresis Max: 250 g

Electrical Properties

  • Rated Output: 2 mV/V
  • Rated Output Error Max: ± 4 μV/V
  • Output Impedance: 350 Ω
  • Supply Voltage Max: 18 V DC

Physical Properties

  • Operating Temperature Min: -10 °C
  • Operating Temperature Max: 40 °C
  • Cable Length: 3 m
  • Material: Steel
  • Screw Thread Size: M12

Connection Information

  • +5V: Red to 5V
  • Positive Signal (+): Green to +
  • Negative Signal (-): White to -
  • Ground: Black to G
  • Ground: Yellow to G

Customs Information

  • Canadian HS Export Code: 8423.90.00
  • American HTS Import Code: 8423.90.10.00
  • Country of Origin: CN (China)

Download the full product sheet:

PDF icon Download Product Sheet, PDF

Warranty & Delivery

  • Warranty 12 months
  • Delivery time up to 10 business days
  • Professional technical support
  • Genuine product
