Rotary Encoder - For 4mm Motor Shaft 300 CPR (3531_0)
Rotary Encoder - For 4mm Motor Shaft 300 CPR (3531_0)
SKU:3531_0
Regular price
159.00 ₪
Regular price
199.00 ₪
Sale price
159.00 ₪
Taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability

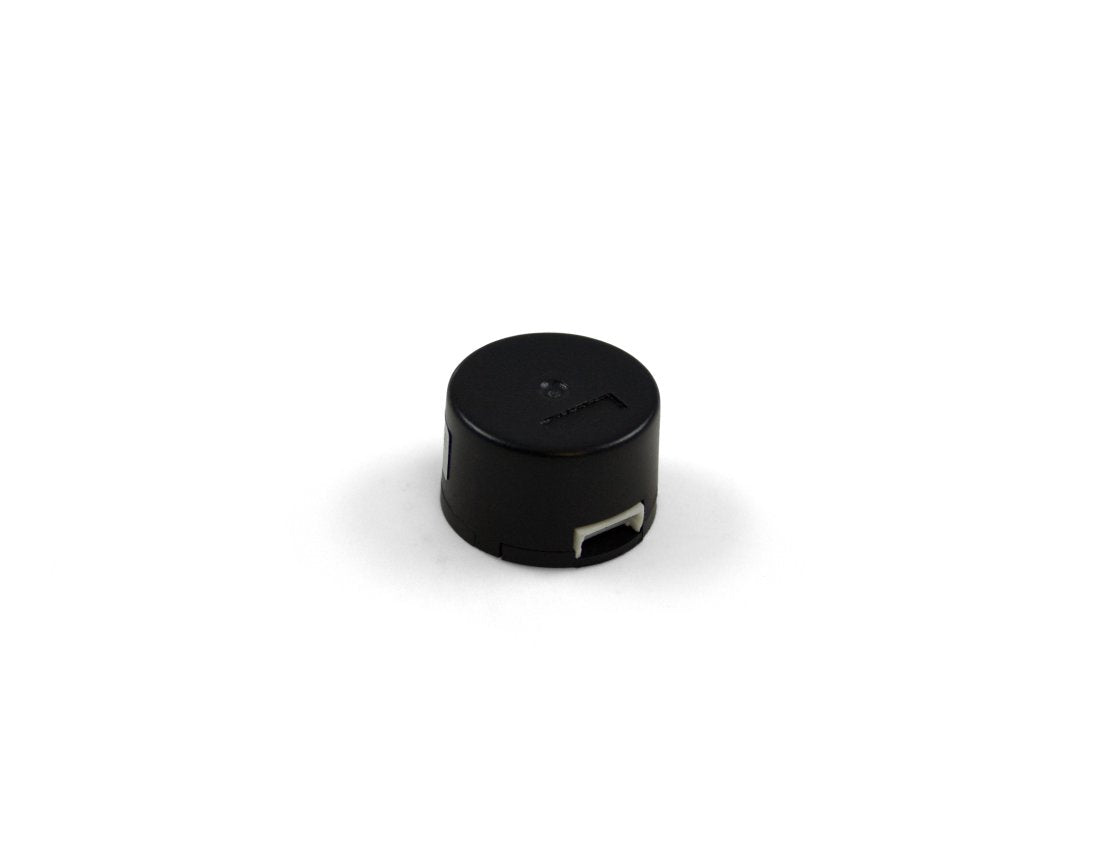

The Rotary Encoder - For 4mm Motor Shaft 300 CPR (3531_0) is a compact, economical optical quadrature encoder designed to mount directly onto the 4 mm rear shaft of stepper motors.

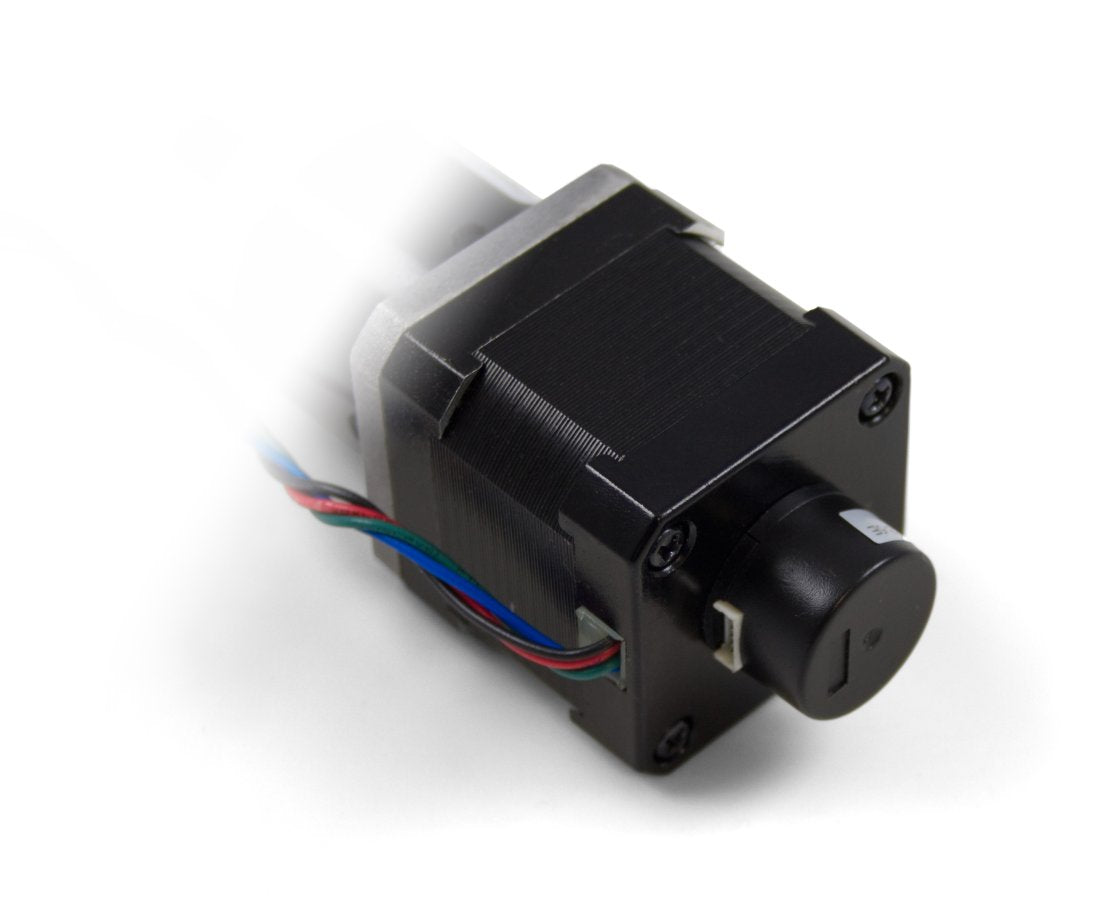

This encoder allows you to accurately measure motor position and detect lost steps even when a motor missteps under heavy loads. Installation is straightforward: fit it over the shaft, align it with the motor's mounting pattern, secure the screws, and tighten the set-screw.
Features:
- Outputs 300 quadrature cycles per rotation (1200 counts per revolution)
- Supports high rotation speeds up to 6000 RPM
- Mounting holes line up directly with all rear-shaft stepper motors from Phidgets
- Includes cable for quick connection to Phidgets encoder interfaces
- Includes mounting screws and hex key for quick assembly
Encoder Capabilities
- Encoder Type: Optical Quadrature (Incremental)
- Shaft Compatibility: 4 mm Rear Motor Shaft
- Resolution: 300 CPR (Cycles Per Revolution)
- Max Speed: 6000 RPM
- Index Channel: Not supported
- Interface Requirement: Connects to a Phidgets Encoder Interface

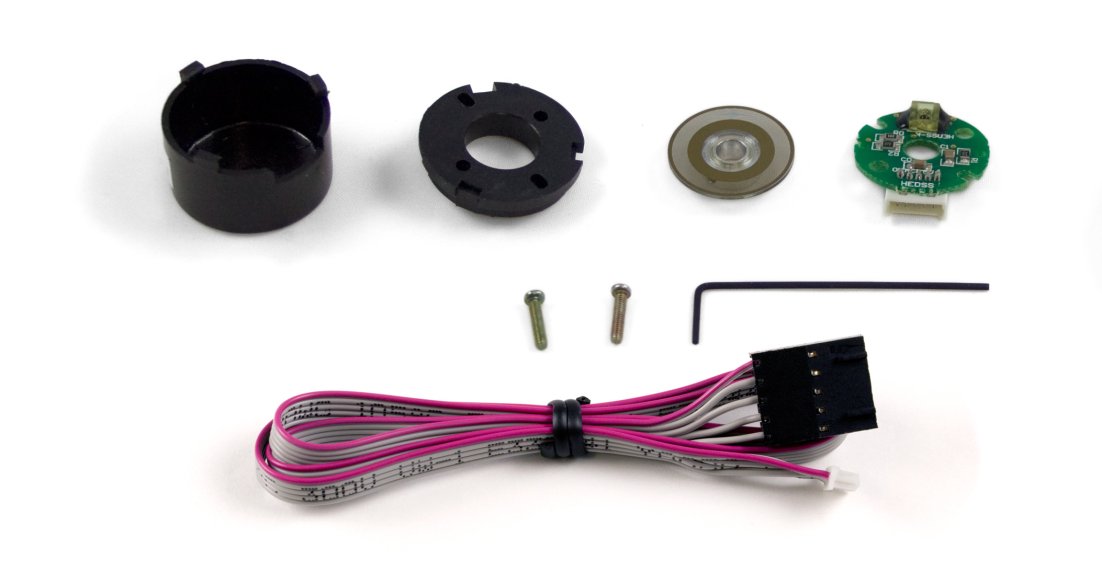

The package includes:
- Rotary Encoder - For 4mm Motor Shaft 300 CPR (3531_0)
- Interface Connection Cable
- Mounting Screws
- Hex Key for assembly

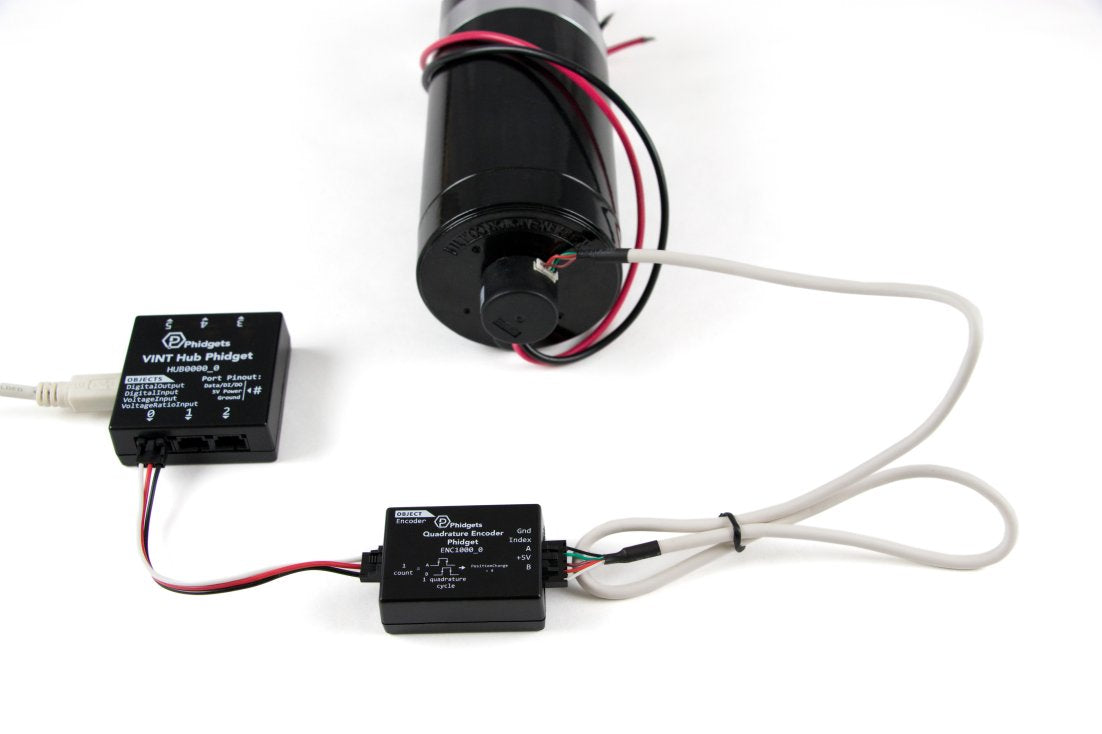

Connects directly to software via any compatible Phidgets Encoder Interface.
- Libraries: Phidget22 API
- OS Support: Windows, macOS, Linux, Raspberry Pi
- Languages: Python, C#, Java, JavaScript, C/C++, Swift, and more
Download the full product sheet and mechanical drawing:
Download Product Sheet & Mechanical Drawing, PDF
- Warranty: 12 months
- Delivery time: up to 10 business days
- Professional customer service, fast delivery, attractive pricing
- Genuine Phidgets product
