Rotary Encoder - 12mm Hollow Shaft 1000CPR with Index (ENC4126_0)
Rotary Encoder - 12mm Hollow Shaft 1000CPR with Index (ENC4126_0)
SKU:ENC4126_0
Couldn't load pickup availability

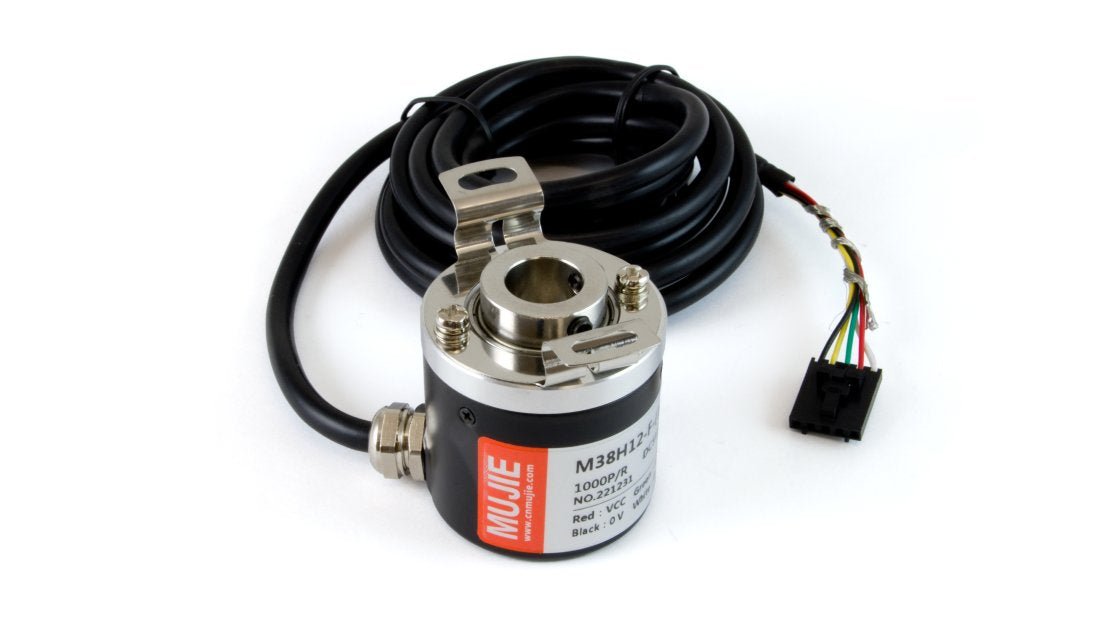

The Rotary Encoder - 12mm Hollow Shaft 1000CPR with Index (ENC4126_0) is an optical rotary encoder designed to track the incremental position, speed, and direction of a motor, shaft, or rotating part.
Featuring a 12mm hollow shaft design, it fits over rotating shafts for straightforward mechanical mounting. The built-in index channel allows for precise homing operations, making it suitable for robotics, automation, and industrial motion control.
Features:
- Outputs 1000 quadrature cycles per rotation (4000 counts per revolution)
- Index channel supported for precise homing and zeroing position
- Supports high rotation speeds of up to 6000 RPM
- Pre-attached connector for fast plug-and-play connection to Phidgets Encoder Interfaces
- Includes mounting screws for immediate installation
Encoder Capabilities
- Encoder Type: Optical Quadrature (Incremental)
- Shaft Type: 12 mm Hollow Shaft
- Resolution: 1000 CPR (Cycles Per Revolution)
- Max Speed: 6000 RPM
- Channels: A, B, and Index (Z)
- Interface Requirement: Connects to a Phidgets Encoder Interface
The package includes:
- Rotary Encoder - 12mm Hollow Shaft 1000CPR with Index (ENC4126_0) with attached cable
- Mounting screws

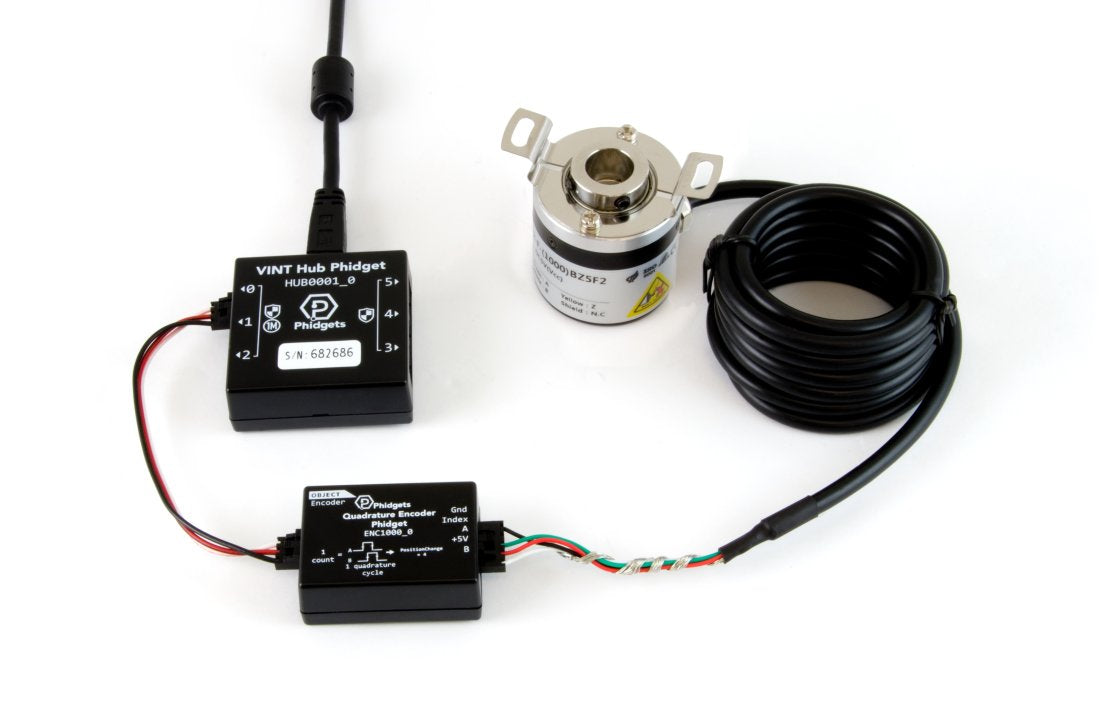

Connects directly to software via any compatible Phidgets Encoder Interface (such as the DCC1000 or High Speed Encoder Phidgets).
- Libraries: Phidget22 API
- OS Support: Windows, macOS, Linux, Raspberry Pi
- Languages: Python, C#, Java, JavaScript, C/C++, Swift, and more
Download the full product sheet and mechanical drawing:
Download Product Sheet & Mechanical Drawing, PDF
- Warranty: 12 months
- Delivery time: up to 10 business days
- Professional customer service, fast delivery, attractive pricing
- Genuine Phidgets product
