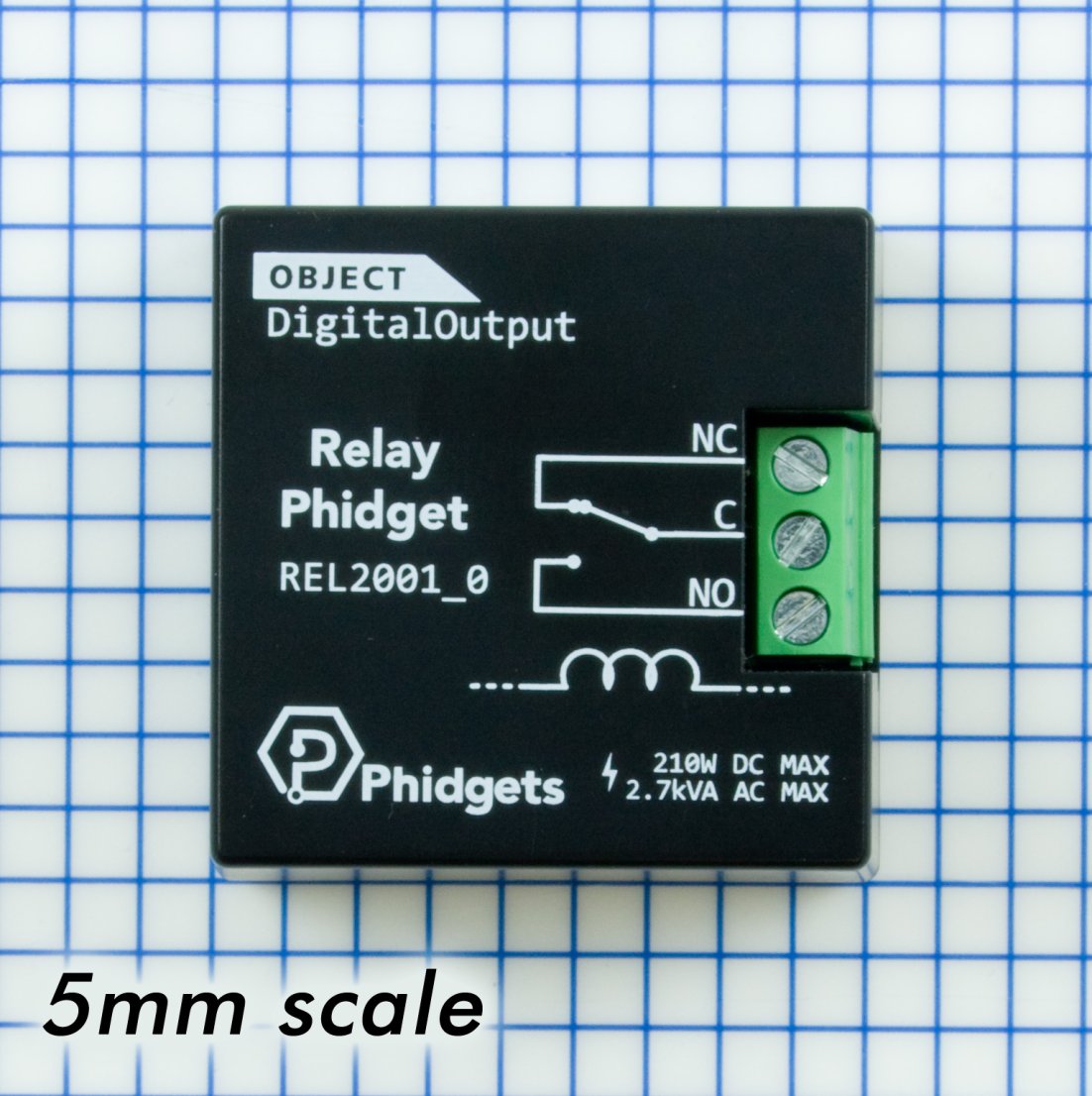

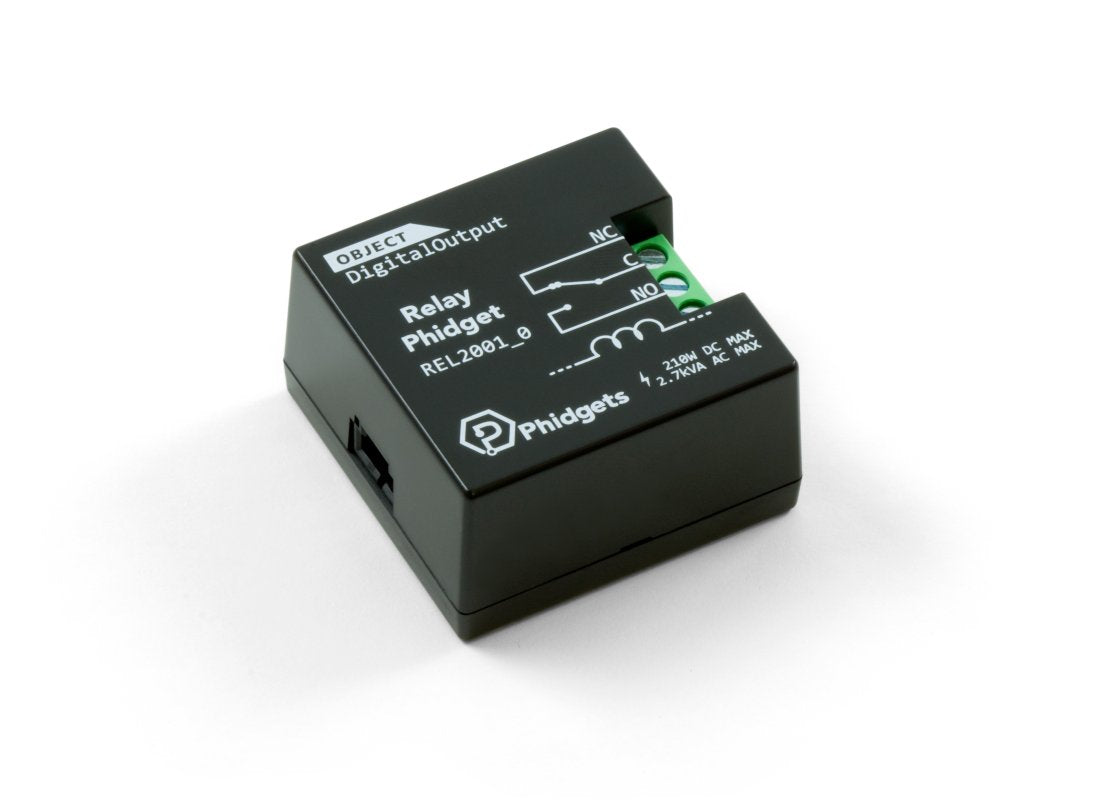

Relay Phidget (REL2001_0)

Relay Phidget (REL2001_0)

REL2001_0

59.00 ₪
79.00 ₪ 59.00 ₪
Sale Sold out
Taxes included. Shipping calculated at checkout.

This board features one SPDT mechanical relay rated at 210W for DC or 1750VA for AC.

The Relay Phidget is a mechanical relay board designed for a wide range of switching applications.

It includes one SPDT mechanical relay capable of switching AC or DC loads, giving you control over high-power devices such as incandescent bulbs, fans, pumps, and other more.

The Relay Phidget connects to your computer through a VINT Hub Phidget.

Features

  • Control one device or circuit with a SPDT relay
  • Rated for 210W of DC power or 1750VA of AC power
  • For DC applications, switch up to 30V at 7A
  • For AC applications, switch up to 12A or 277VAC (total power below 1750VA)



Board Properties

  • Controlled By: VINT

Relay Properties

  • Number of Relays: 4
  • Switch Type: SPDT
  • Load Current Min: 100 mA
  • Turn-off Time Max: 5 ms
  • Turn-on Time Max: 8 ms
  • Contact Resistance Max: 50 mΩ
  • Dielectric Strength: 1.5 kV AC
  • Electromagnet Coil Resistance: 70 Ω
  • Switching Power Max (Real): 210 W
  • Switching Power Max (Apparent): 1.8 kVA

Electrical Properties

  • Load Voltage Max (DC): 30 V DC*
  • Load Current Max (DC): 7 A
  • Load Voltage Max (AC): 277 V AC
  • Load Current Max (AC): 12 A
  • Current Consumption Min (VINT Port): 500 μA
  • Power Consumption: 40 mW
  • Supply Voltage: 8 – 30 V DC

Physical Properties

  • Recommended Wire Size: 12 – 24 AWG
  • Operating Temperature: -40 °C to 70 °C

* Switching above 30V will reduce lifespan.

Please Note: Cannot be switched at maximum AC voltage and current simultaneously.

Software Objects

  • Channel Name: Power Relay
  • API: DigitalOutput
  • Channel: 0 – 3
  • Warranty: 12 months
  • Delivery time: up to 10 business days
  • Professional customer service, fast delivery, attractive pricing
  • Genuine Phidgets product
PDF icon Download Product Sheet, PDF
