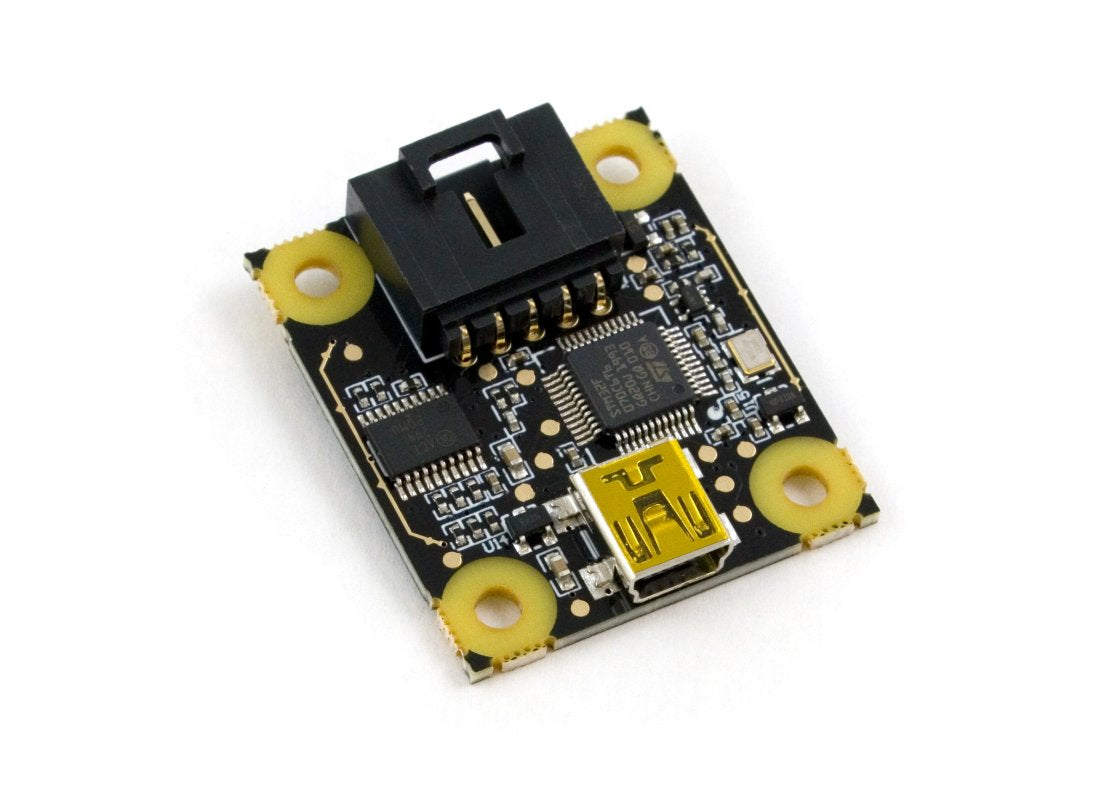

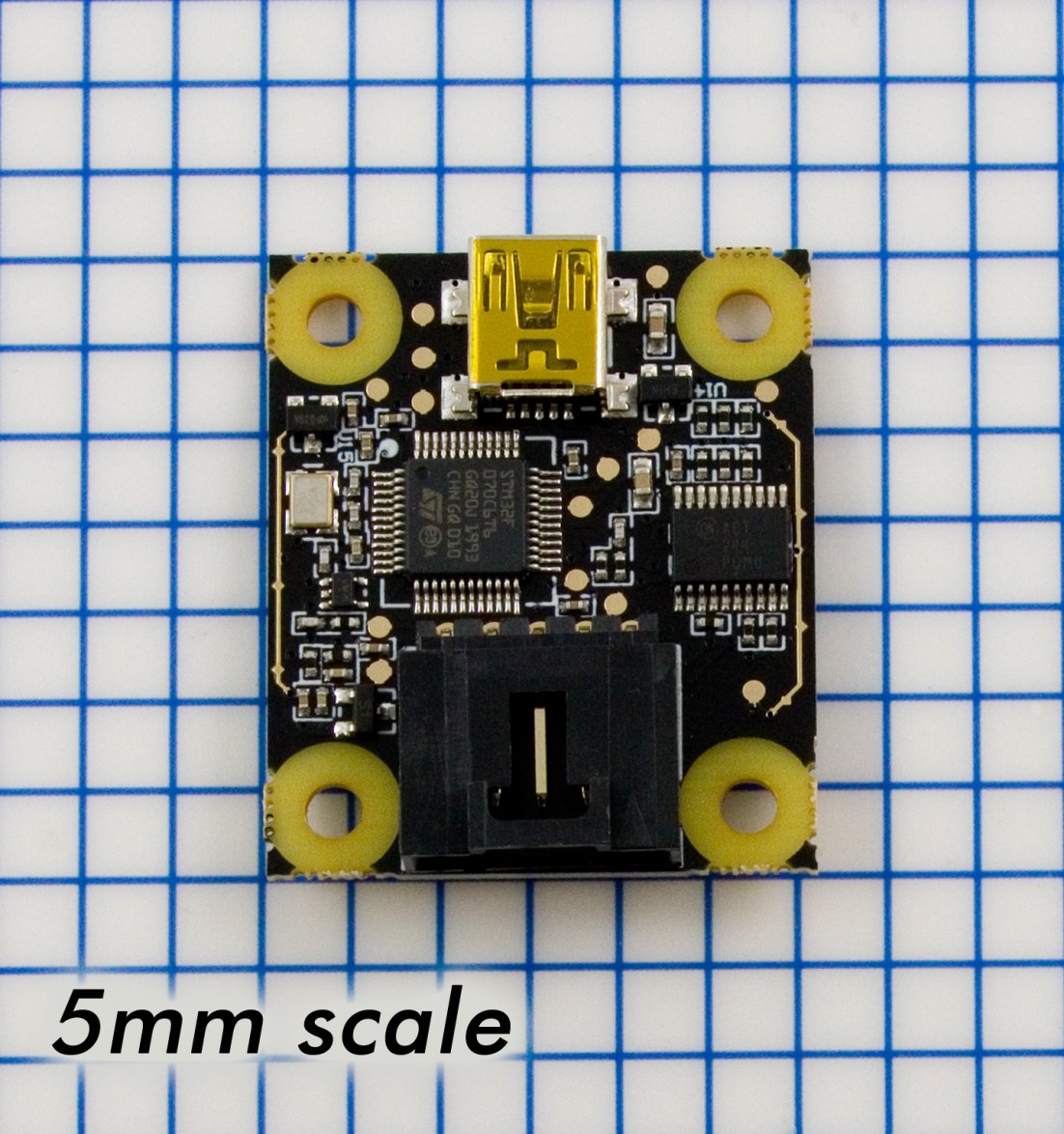

PhidgetEncoder HighSpeed (1057_3)

The PhidgetEncoder HighSpeed (1057_3) is a USB quadrature encoder interface designed to track high-speed motion feedback with extreme precision.

Capable of reading up to 500,000 quadrature cycles per second, this interface connects any standard 5V quadrature encoder directly to your computer via USB. It allows you to continuously monitor position, distance, and velocity in software for accurate closed-loop motor control.

Features:

• Reads high-speed encoder input up to 500,000 quadrature cycles per second
• High compatibility: supports Line Driver, Open Collector, or Push-Pull encoder outputs with configurable resistor values
• Supports Index channel tracking for precise homing and zeroing
• Reports millisecond-accurate timestamps for each position change event, making velocity calculations straightforward
• Fast data update rate up to 125 Hz over USB

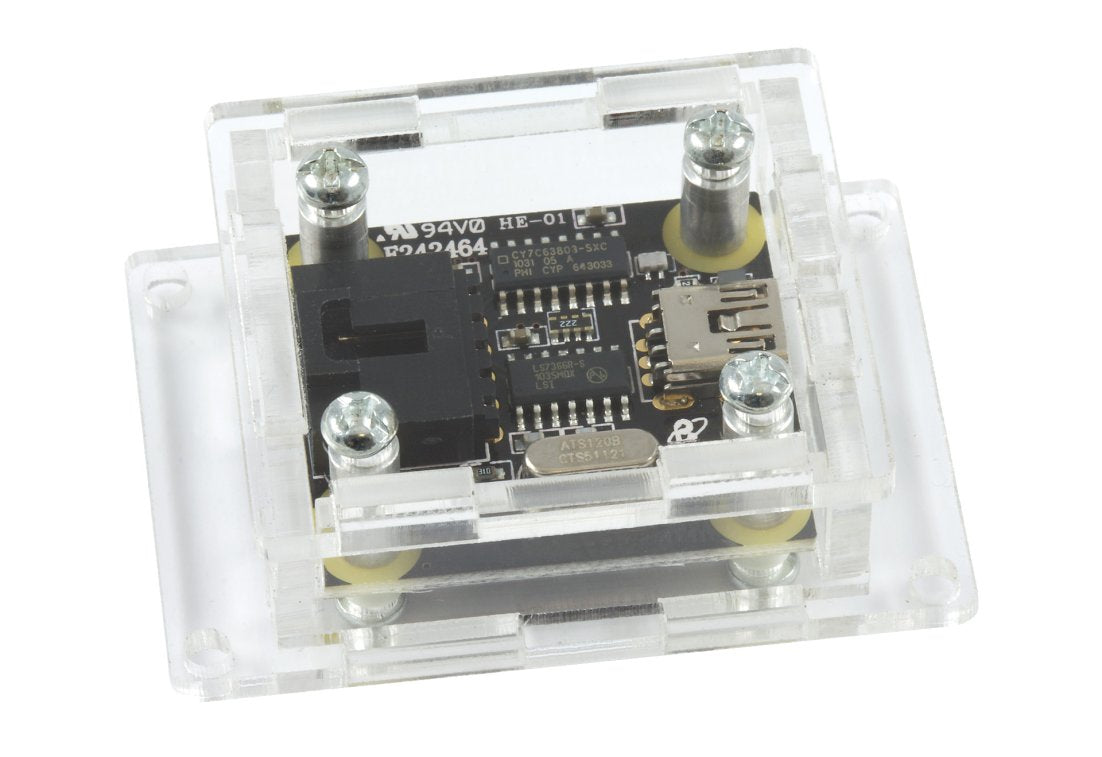

• Includes mounting hardware for quick installation
