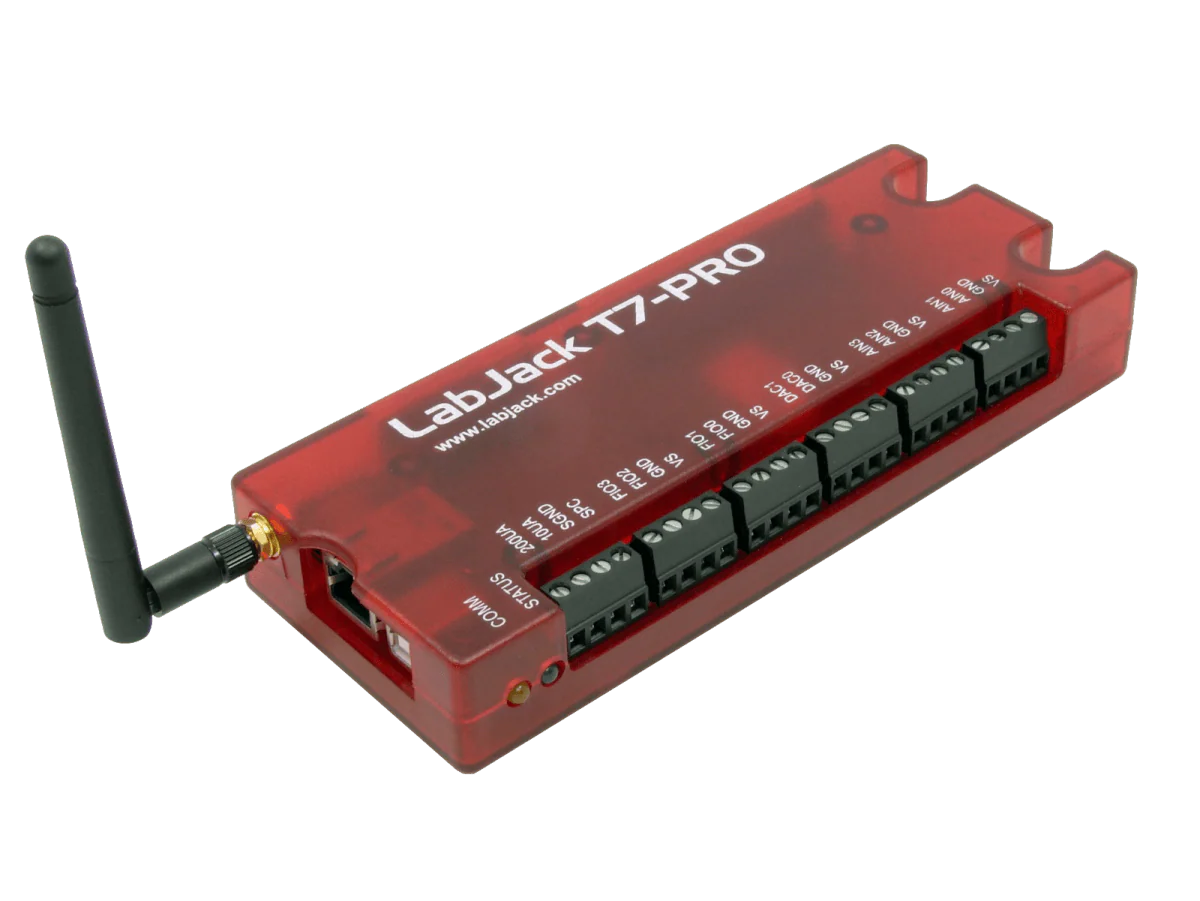

LabJack T7-Pro (T7 Pro)
LabJack T7-Pro (T7 Pro)
SKU:T7-Pro
Couldn't load pickup availability
All the features of the normal T7 with the major addition of WiFi connectivity and an auxiliary low-speed high-resolution (24-bit) sigma-delta ADC. The T7-Pro also includes a real time clock (RTC) and 4GB MicroSD card for standalone datalogging.
With 14 instrumentation amplified analog inputs, software selectable gain settings, dozens of digital I/O features, and a Modbus TCP front-end, the T7 is our most versatile multifunction DAQ platform. Common applications include laboratory research, industrial control and monitoring, automated testing, and prototype development. Additionally, T7 devices are capable of stand-alone operation by running Lua scripts.
The LabJack T7 also has 2 analog outputs (12-bit), 23 digital I/O, and up to 10 digital counters/timers.
Board Properties
- Controlled By: USB
USB Hub
- Number of USB Ports: 7
- Available Current per USB Port: 500 mA
- USB Speed: High Speed
Electrical Properties
- Supply Voltage Min: 8 V DC
- Supply Voltage Max: 30 V DC
- Current Consumption Min: 100 mA
- Current Consumption Max: 3 A
Physical Properties
- Power Jack: 5.5 x 2.1mm Center Positive
- Operating Temperature Min: 0 °C
- Operating Temperature Max: 70 °C
Download the full product sheet:
Download Product Sheet, PDF
