Force Sensor (1106_0)
Force Sensor (1106_0)
SKU:1106_0
Couldn't load pickup availability

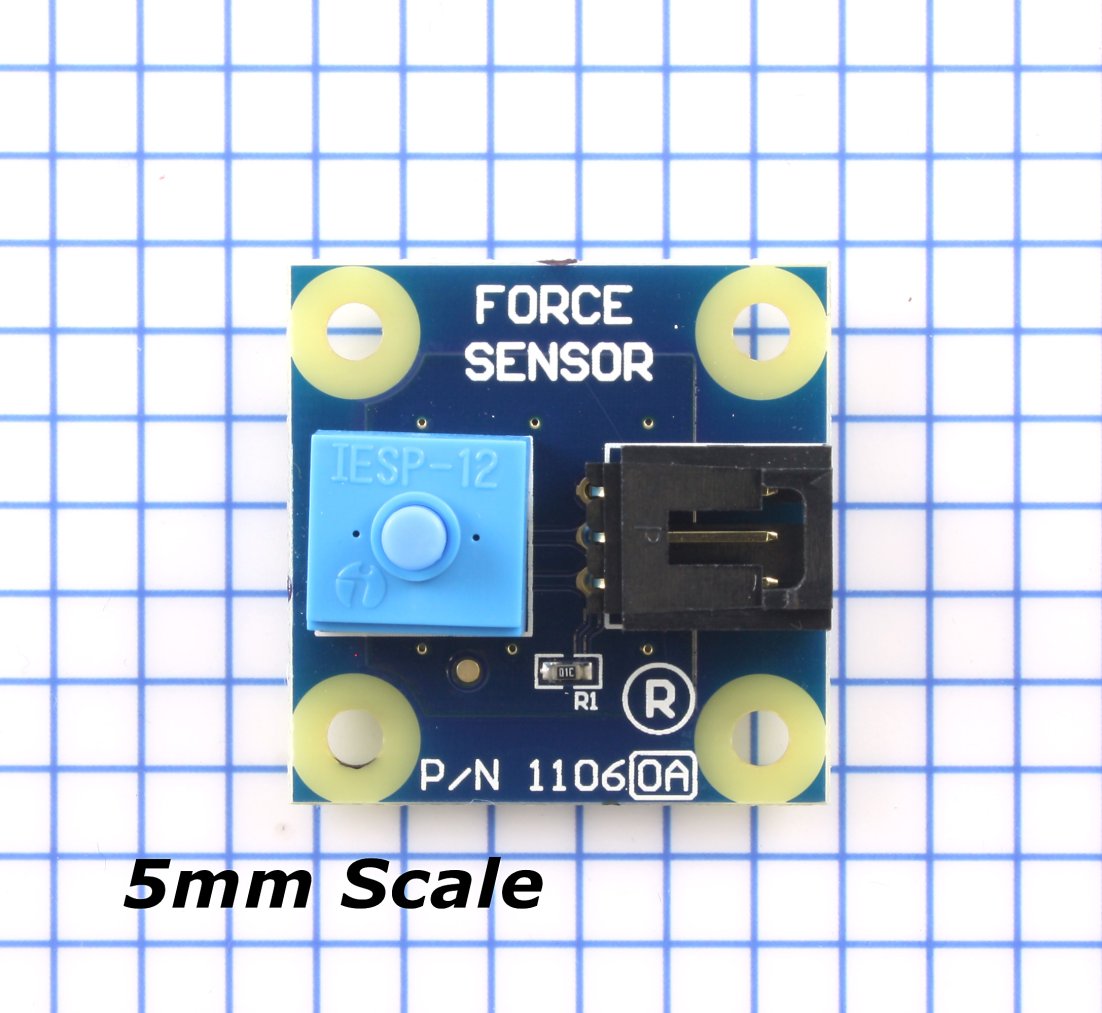

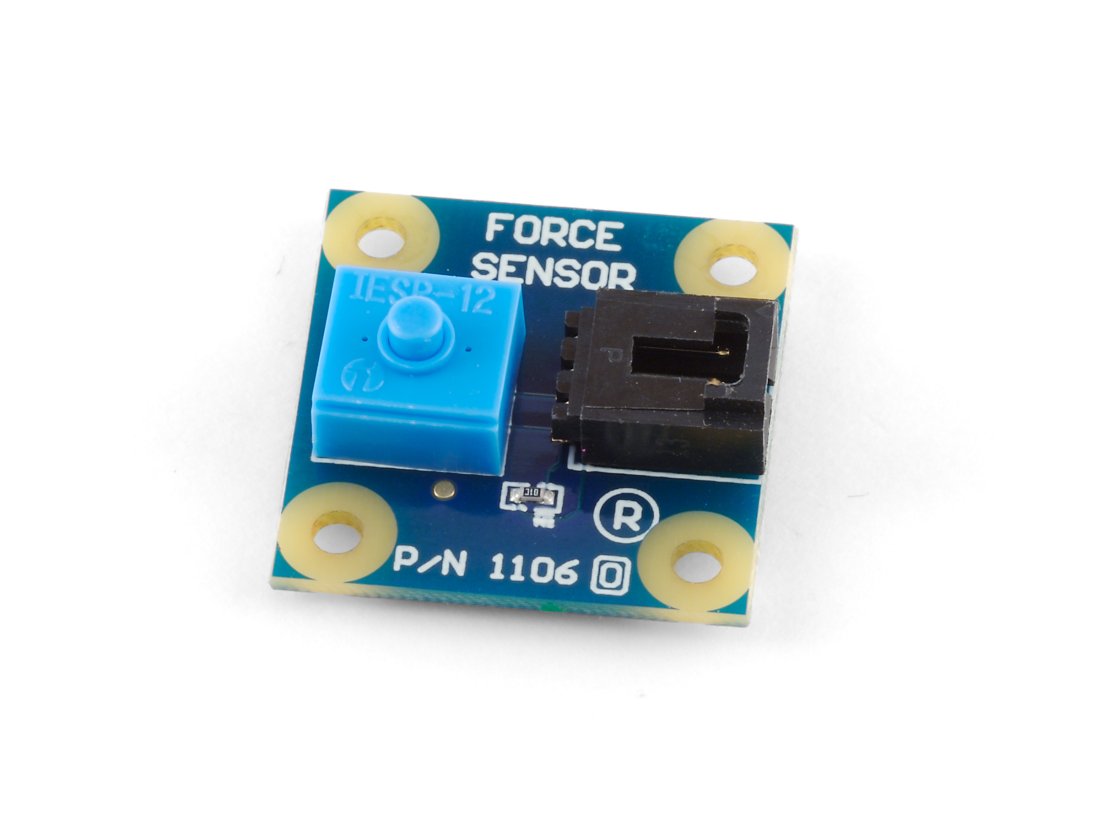

The Force Sensor (1106_0) is a compact, easy-to-use analog force sensor designed primarily for human input detection and physical press interactions.
When no force is applied, the sensor outputs 0V, with the voltage linearly increasing toward 5V as pressure increases on the circular active area. It is ideal for detecting button presses, touch triggers, or object presence.
Note: The 1106 is intended for touch detection and light interaction—it is not designed for continuous static loading or precision weight measurement.
Features:
- Responds to forces up to 38 N in magnitude
- Outputs an analog voltage signal from 0V to 5V relative to applied force

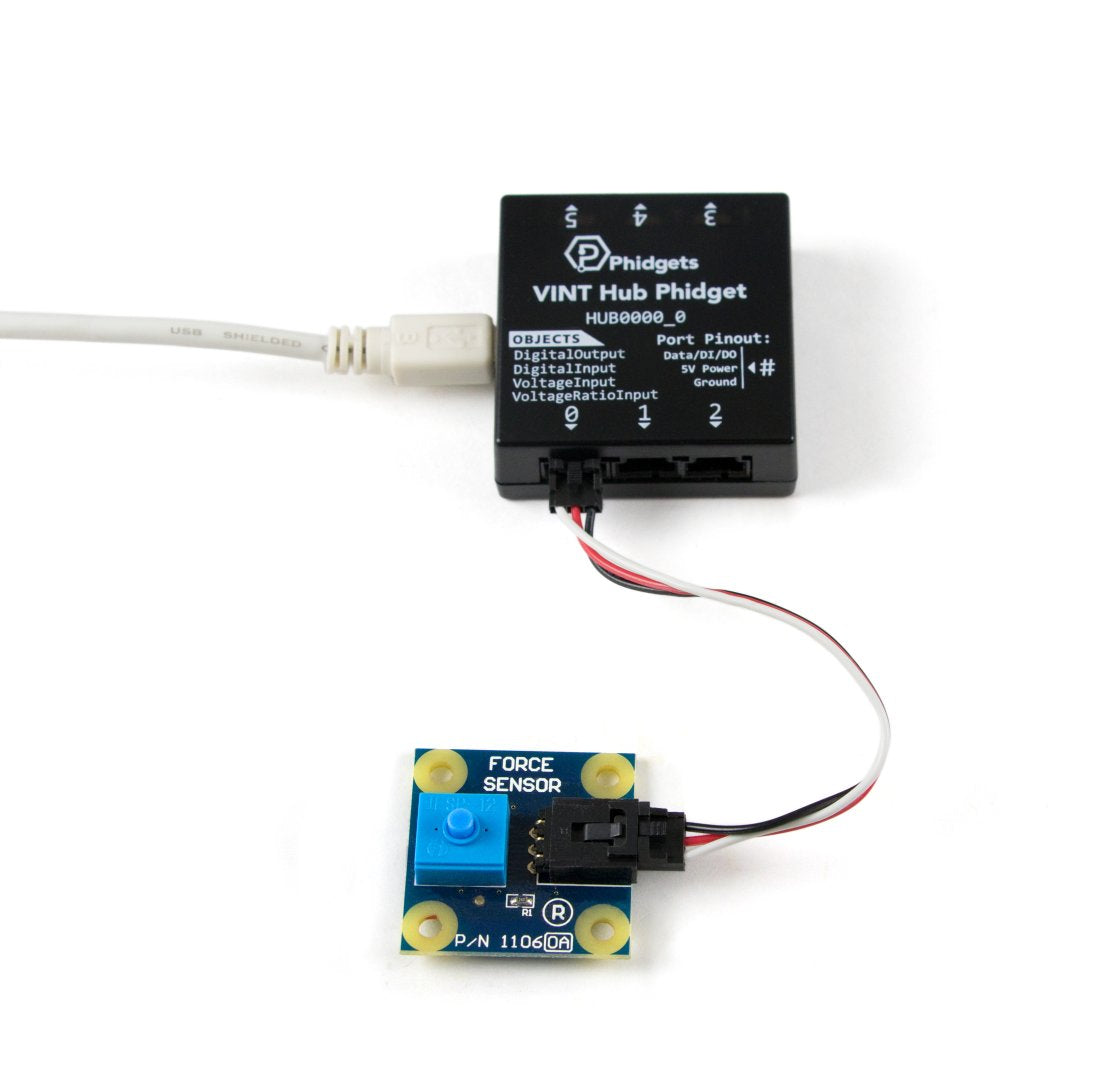

- Plugs directly into any Phidgets VINT port or Voltage Input interface

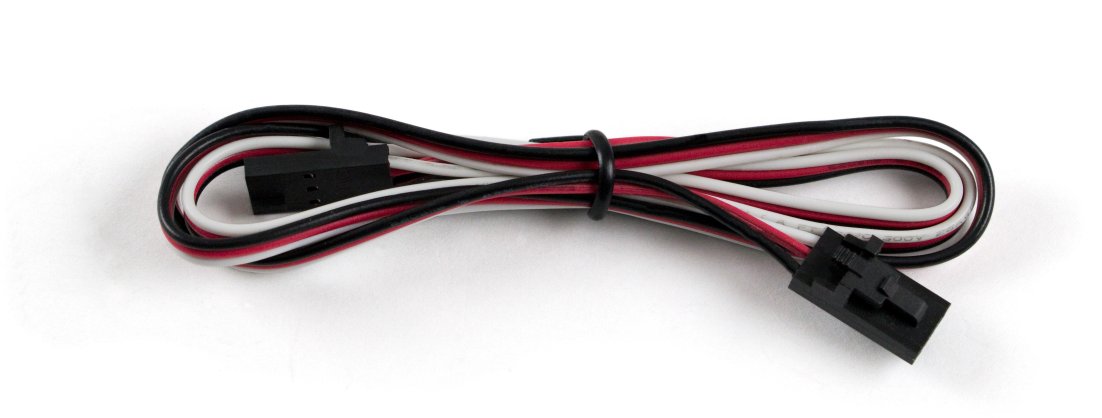

- Includes a 60 cm Phidget connection cable
Sensor Specifications
- Sensor Type: Force Sensitive Resistor (FSR) / Analog Force Sensor
- Max Force: 38 N (~3.8 kg / 8.5 lbs)
- Output Type: 0V – 5V Analog Voltage
- Cable Length: 60 cm
- Interface Requirement: Phidgets VINT Hub port (in Voltage Input mode) or Analog Voltage Input
The package includes:
- Force Sensor (1106_0)
- 60 cm Phidget Cable
Reads directly via software through any connected Phidget VINT Hub or Analog Input interface.
- Libraries: Phidget22 API
- OS Support: Windows, macOS, Linux, Raspberry Pi
- Languages: Python, C#, Java, JavaScript, C/C++, Swift, and more
Download the product documentation and technical reference sheet:
Download Product Sheet & Mechanical Drawing, PDF
