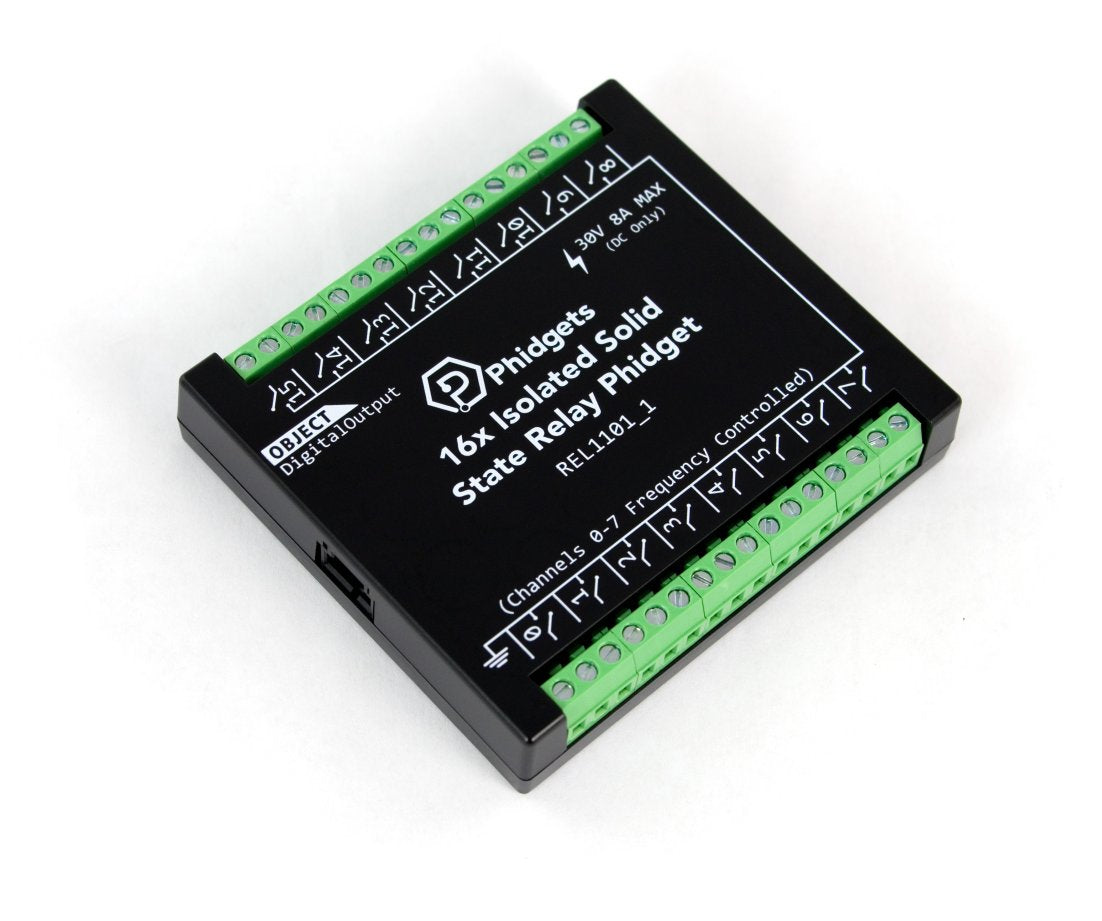

16x Isolated Solid State Relay Phidget (REL1101_1)

The 16x Isolated Solid State Relay Phidget is a general-purpose controller suitable for a wide range of applications.

The relay outputs can control devices requiring substantial power, such as incandescent lights, high-power LEDs, relays, solenoids, motors, and more. Each output can switch up to 30VDC at up to 8A. The outputs act as a low-side switch to a shared ground, so the circuit you're switching will need an external power supply. The outputs support PWM with selectable frequency, allowing you to achieve finer control when needed. Each output is protected from transient voltages typical when switching inductive devices like relays, solenoids, and motors.

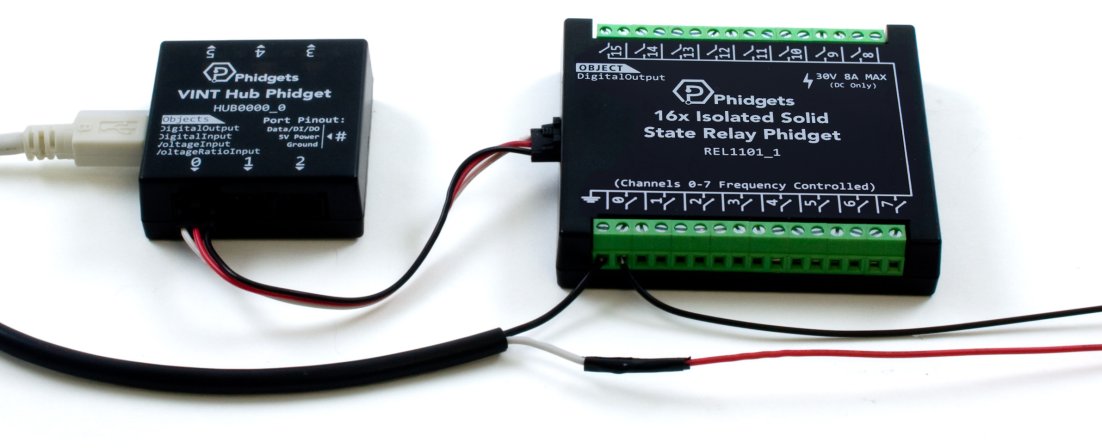

This device connects to your computer through a VINT Hub Phidget.

Features

• 16 relay outputs
• Supports PWM (pulse-width modulation) on all outputs
• Supports Failsafe on all outputs
• Electrical isolation
