Precision Temperature Sensor (1124_0)
Precision Temperature Sensor (1124_0)
SKU:1124_0
Couldn't load pickup availability

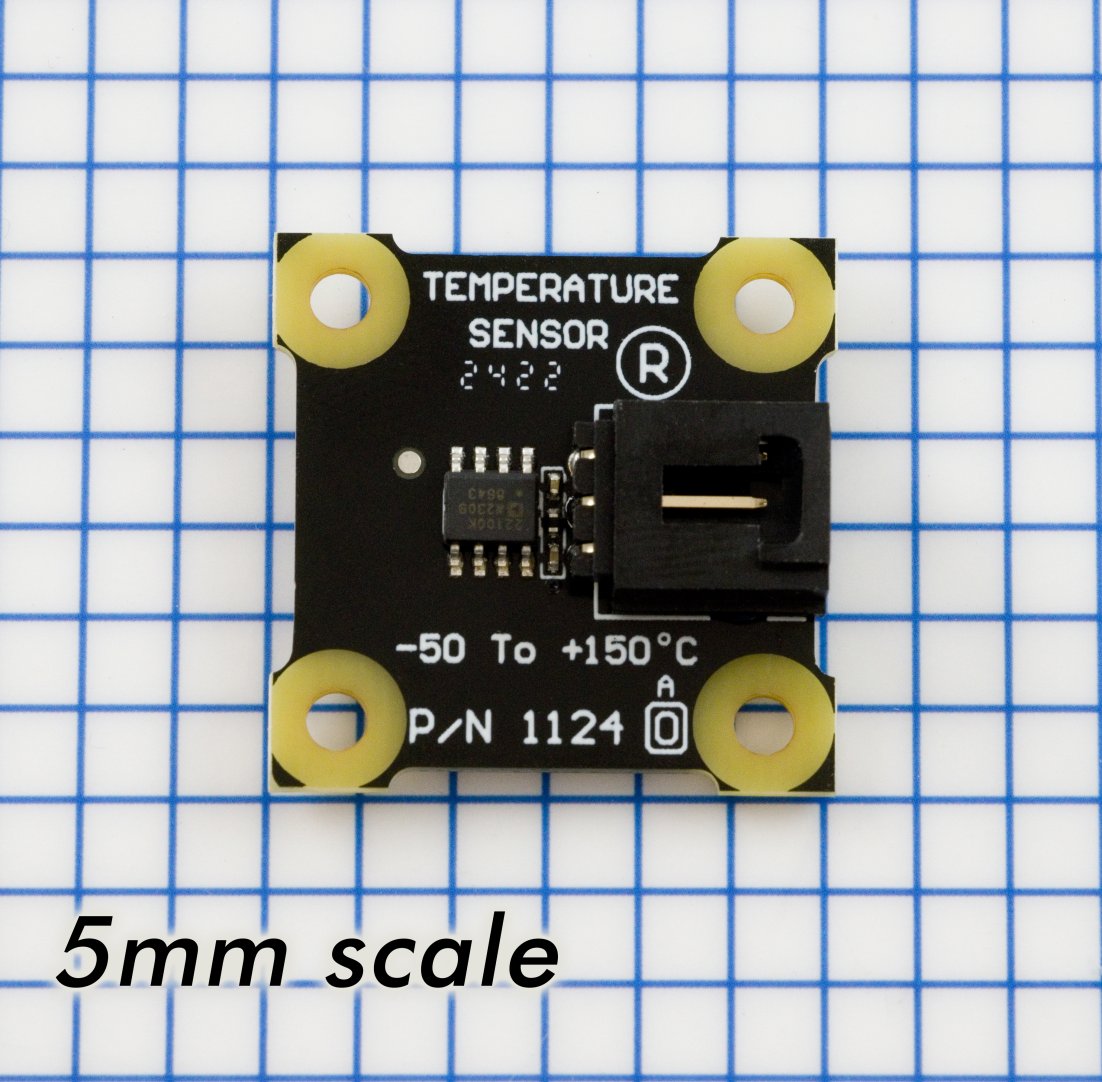

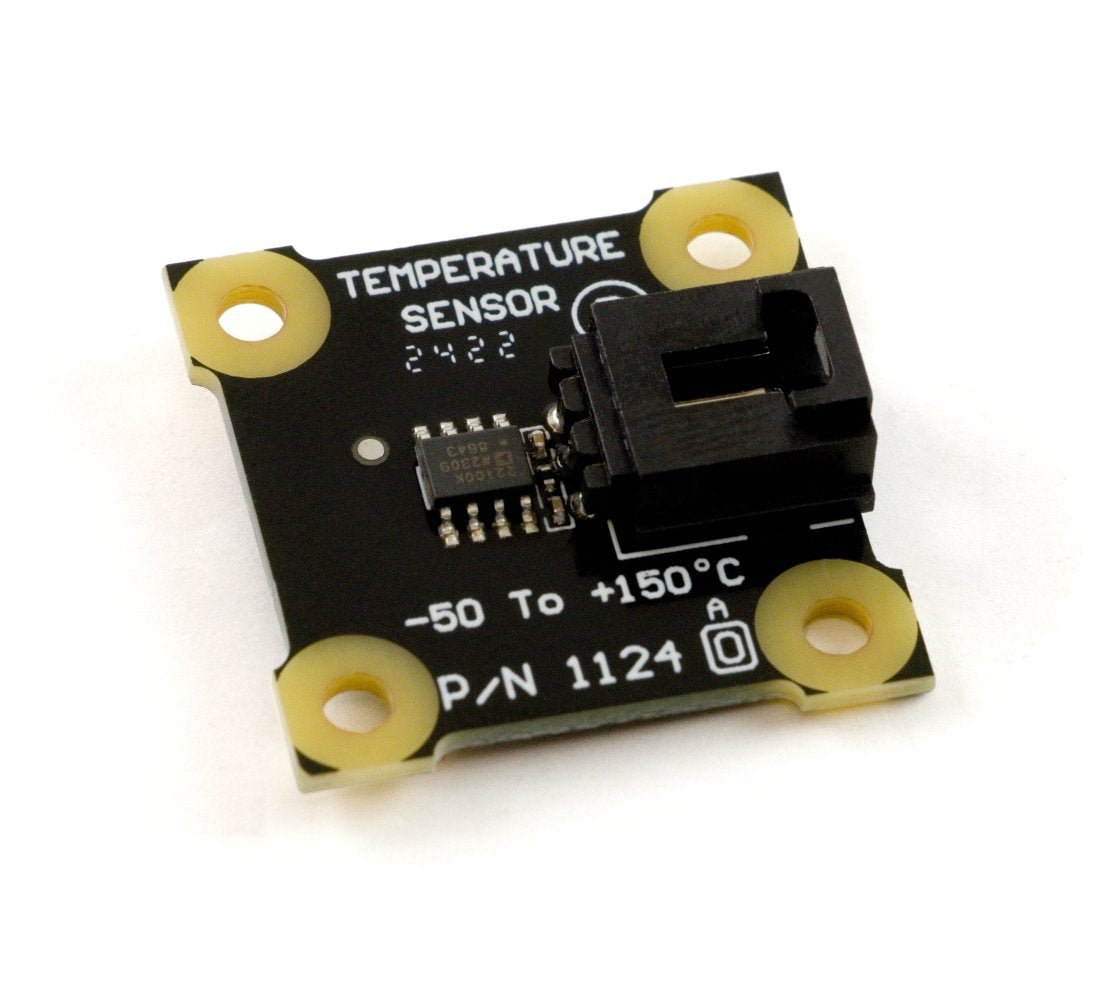

The Precision Temperature Sensor (1124_0) is an inexpensive ratiometric sensor designed to measure ambient air temperature surrounding the board across a rated commercial range of -30°C to +80°C.
Featuring typical accuracy of ±0.5°C at 25°C (and typical ±0.75°C error from 0°C to 80°C), this sensor outputs an analog voltage proportional to temperature. While the board, cable, and connectors are rated for -30°C to +80°C for commercial applications, the IC component itself supports rapid prototyping up to broader extremes (-50°C to +150°C).
Features:
- Measures ambient air temperature from -30°C to +80°C
- Ratiometric output connects directly to Phidget VoltageRatio Inputs
- High typical accuracy (±0.5°C at 25°C, ±0.75°C over 0°C to 80°C)
- 0.2°C temperature resolution
- Ultra-low current consumption (max 1 mA)
- Includes 60cm Phidget Cable and mounting hardware kit
Sensor Properties
- Sensor Type: Ambient Temperature
- Controlled By: VoltageRatio Input
- Sensor Output Type: Ratiometric
- Ambient Temperature Range: -30 °C to +80 °C
- Resolution: 0.2 °C
- Typical Accuracy (at 25°C): ±0.5 °C
- Typical Error (0°C to 80°C): ±0.75 °C
- Max Temperature Error: ±2 °C
Electrical & Physical Specifications
- Supply Voltage Range: 4.0 V DC to 6.5 V DC
- Current Consumption (Max): 1 mA
- Output Voltage Range: 250 mV DC to 4.8 V DC
- Output Impedance: 1 kΩ
- Operating Temperature Range: -40 °C to +105 °C
The package includes:
- Precision Temperature Sensor Board (1124_0)
- 3002 – 60cm Phidget Cable
- Hardware Mounting Kit (4 nuts and bolts, 4 plastic spacers)

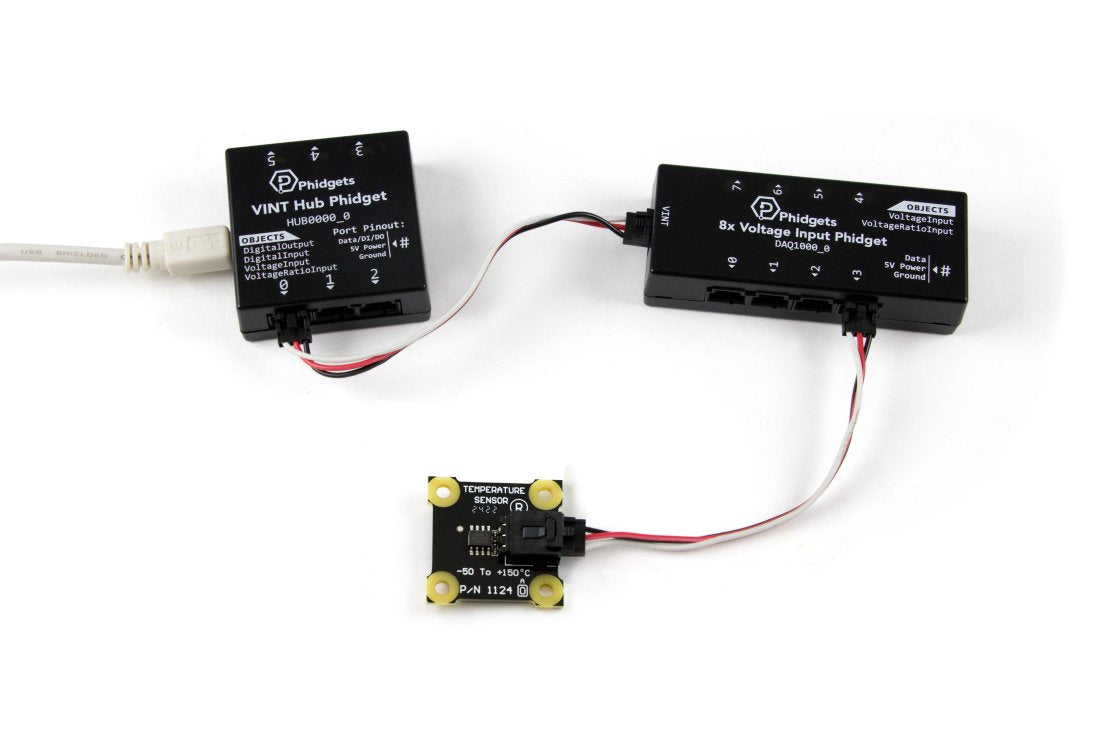

Interfaced through a VoltageRatio Input channel on a Phidgets VINT Hub or InterfaceKit using the Phidget22 software library.
- API Object Class: VoltageRatioInput / TemperatureSensor
- OS Support: Windows, macOS, Linux, Raspberry Pi
- Languages: Python, C#, Java, JavaScript, C/C++, Swift, LabVIEW, and more
Download technical documentation and drawing files:
Download Product Sheet & Mechanical Drawing, PDF
