If you are still relying on traditional electromechanical relays (EMRs) to handle frequent switching in your automation systems or control panels, you are likely leaving system reliability and safety on the table.
While old-school mechanical switches have their place, the solid state relay (SSR) has become the industry standard for high-speed, high-cycle applications. Let's break down how they work, how to calculate your real power needs, and how to scale your system safely.
What is a Solid State Relay?
Unlike a mechanical relay that uses an internal magnetic coil to physically move metal contacts, a solid state relay relies entirely on semiconductor electronics (like thyristors, TRIACs, or transistors) to switch power.
Because there are zero moving parts, the entire switching process happens optically.
Inside the SSR, an internal infrared LED acts as a transmitter. When a low-current control voltage is applied, the LED shines across a physical isolation gap to a photosensitive receiver.
This mechanism, known as an optocoupler, completely isolates your sensitive control circuitry (like a PLC, PC interface, or micro-controller) from high-voltage load lines. This eliminates the risk of high-voltage spikes feeding back into and destroying your expensive controller.
The Core Advantages Over Mechanical Relays
SSRs perform the exact same foundational job as mechanical switches, but they offer distinct engineering upgrades:
-
Silent & Vibration Proof: With no mechanical switch inside, they suffer from zero contact bounce, operate completely silently, and are highly resistant to physical vibrations.
-
Rapid Switching Speed: SSRs turn on and off in roughly 1 millisecond, compared to the 10 to 25 milliseconds required for a mechanical arm to physically move.
-
No Contact Arcing: Mechanical contacts naturally spark (arc) when opening and closing under load, creating electromagnetic interference (EMI) and eventually wearing down. SSRs are purely digital, producing significantly less EMI and easily lasting for millions of cycles.
How to Choose the Right SSR: The Math That Matters
You cannot select an SSR based on your device's average operating specs alone. To prevent frying your components, you must calculate two critical factors:
1. The Surge Current Multiplier
Many devices demand a massive inrush of power the exact millisecond they are turned on. If you don't account for this peak surge, the internal semiconductor will burn out instantly.
To find your Surge Current, find your average operating current and apply the industry-standard equipment multipliers:
| Application / Load Type | Surge Multiplier | Examples |
| Resistive | 1x | Heaters, Toasters, LED Lights |
| Highly Inductive | 6x | Electric Motors, Fans, Incandescent Bulbs |
| Fluorescent Lighting | 10x | Older Magnetic Ballast Fixtures |
| Transformers | 20x | High-power industrial power steps |
Calculation Example: A small industrial exhaust fan motor runs at an average of 1.5 Amps. Because a motor is an inductive load, its startup surge multiplier is 6x.
You must select an SSR rated for a maximum surge current greater than 9 Amps, even though it only pulls 1.5 Amps while running.

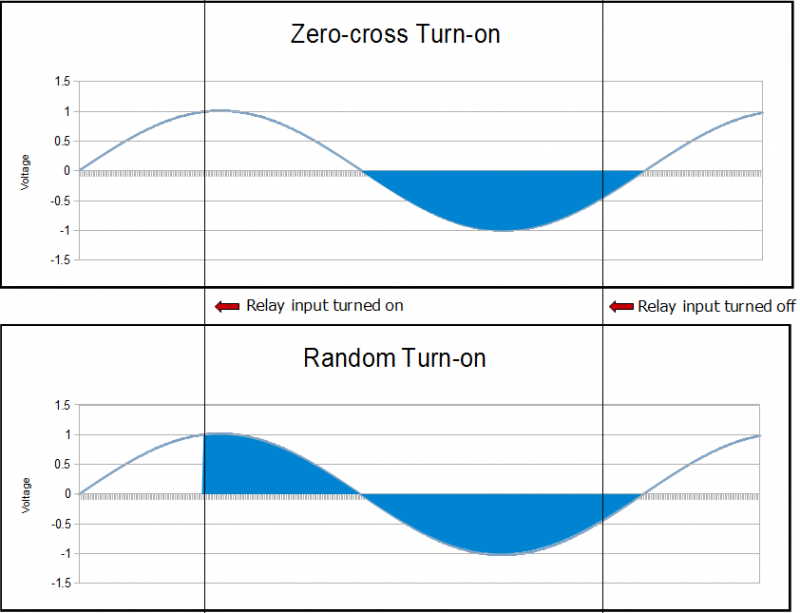

2. AC Load Behavior: Zero-Cross vs. Random Turn-On
Because Alternating Current (AC) flows in an oscillating wave, when the relay fires matters completely.
-
Zero-Crossing SSRs: As illustrated in the bottom half of the diagram, these wait until the AC voltage wave naturally crosses the zero-volt mark before opening the gate. This minimizes electrical noise and is ideal for resistive loads like heating elements.
-
Random Turn-On SSRs: Shown in the top half of the diagram, these open instantly the microsecond they receive a signal, regardless of where the AC wave is. This is required for inductive loads (like motors and transformers) because their voltage and current waves are out of phase.
Scaling Up: Multi-Channel Control Layouts
When managing complex automated setups, installing dozens of individual single-channel SSRs quickly leads to crowded control enclosures, complex wiring diagrams, and high installation labor times.
For dense system designs—such as environmental testing chambers, multi-zone heating systems, or automated testing fixtures—using integrated multi-channel relay boards is a standard engineering practice to save physical space and simplify cable management.
Application Spotlight: High-Density Digital Switching
For designs requiring a mix of low-power AC and DC loads managed from a single control point, multi-channel solutions like the Phidgets 16x Isolated Solid State Relay (REL1101_1) allow you to consolidate your switching hardware into a single interface footprint.
When evaluating multi-channel architectures for an industrial or lab bench environment, engineers typically look for three foundational features:
-
Hybrid Load Handling: Having split architectures (such as 8 AC channels and 8 DC channels on a single board) allows you to switch diverse hardware components—like 240V AC fan motors alongside 12V DC indicator lights—without mixing up discrete external relays.
-
Galvanic Isolation Specs: High-density arrays face greater risks of cross-talk. Opting for boards with robust optical isolation (such as 3000V AC isolation) ensures that if an overcurrent fault occurs on a single external load line, the high-voltage spike is physically blocked from traveling back to the main control bus or host PC.
-
Synchronized Software Control: Using integrated boards allows your control logic to interface directly via standardized software APIs or digital outputs. This allows for precise, microsecond-level synchronization across all 16 channels simultaneously, which is critical for sequential test procedures or timing-sensitive machinery.
Critical Safety Realities: The "Fail-Closed" Rule
When an electromechanical relay fails, its internal spring usually pulls the contacts apart, leaving the circuit safely open. Solid state relays do the exact opposite.
When an SSR fails due to excessive heat, voltage spikes, or massive current overloads, the internal transistor almost always shorts out and fails permanently closed.
This means even if your controller turns off the control signal, power will continue flowing unimpeded to your machine, potentially causing a runaway heating element or a stuck motor.
Best Practices for Safe Installation:
-
Always Isolate the Hot Line: Always place the SSR on the live/positive line between the power supply and the load. If you place it between the load and ground, the device will still turn on and off, but the entire machine remains live and presents a severe electrocution hazard even when switched "off."
-
Watch the Total Board Current: For multi-channel arrays, ensure the total combined current of all active channels does not exceed the board's maximum thermal rating to prevent premature wear.
-
Use Physical Backups: For high-stakes applications (like heavy industrial furnaces), always pair your electronic switching array with a secondary mechanical safety contactor or a thermal master fuse that can break the main power line if an SSR channel fails closed.
